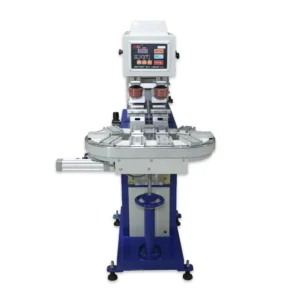

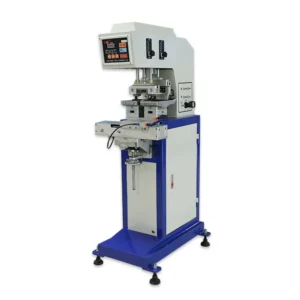

Three Color Closed Ink Cup Pad Printer For Electronics

Product name : Three Color Closed Ink Cup Pad Printer

Machine Type: Three Color , Closed Ink cup

Inkcup Size: OD100 ID 90 H12mm

Plate Size: 100*200mm or 100*250mm or customized

Drive : Pneumatic , Semi-automatic

Machine Brand: ENGY

Application : Widely applied in many industries but not limited to toys, plastics, gifts, electronics, bottle caps, baby products etc.

Product Details

ENGYPRINT Three Color Ink cup Pad Printing Machine Specifications:

Model NO.	EN-C160/3S
Plate size	100*250mm
Max. printing size	60*110mm
Ink Cup Size	OD100 ID 90 H12mm
Printing capacity	900 cycles/hour
Air requirement	5 bar (72.5 psi)
Main voltage	110V/220V 50/60Hz 40W
Machine size	L850W850H1400mm
Net Weight	125kg

Machine Standard Features:

● Different machine stroke are available to meet diversify product printing demand

● Semi automatic, microprocessor control system, electro-pneumatic control;

● Independent adjustment of up and down, front and back stroke

● Independent X, Y printing pad adjustment

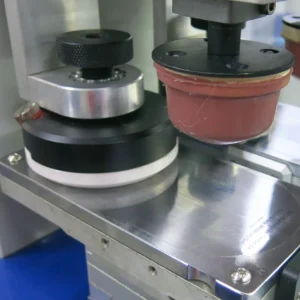

● Ink cup base with X, Y, R adjustment, worktable X,Y adjustment

● Foot pedal operation for single cycle;

● Complying with CE safety standards.

The machine main body is used anti-rust steel, the printing precision is able to reach ±0.03mm, with the emergency stop function, the printer can be stopped immediately and easily if any emergency happen. With the PLC control, the machine is able to work more efficiently.
