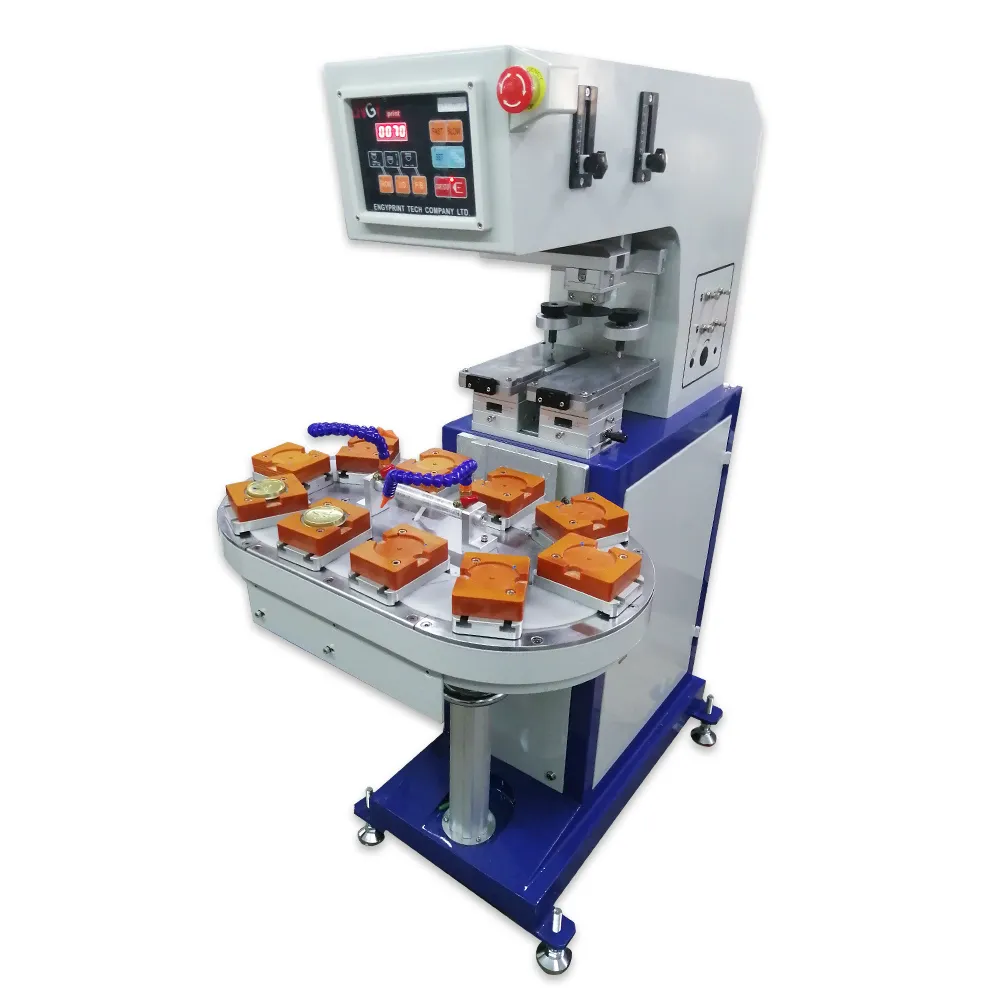

Product name:Two Color Pad Printing Machine With Conveyor For Metal Caps
Model Number:EN-C160/2A
Machine Type: Two Colors, Closed Ink cup with conveyor
Inkcup Size: OD 90 ID 82 H12mm
Plate Size: 100*250mm
Fixture : 10
Drive : Pneumatic , Semi-automatic
Application : Garments, Pen, cap of bottle,
watches, cameras, pharmaceutical and medical equipment etc.
ENGYPRINT Two Color Inkcup Pad Printing Machine Specifications:
| Model No. | EN-C160/2A |
| Plate size | 250 x 100mm (10”x4”) |
| Ink cup size (diameter) | ID82 x OD90 mm (3.23”x3.54”) |
| Max. printing size | 75x 75 mm (2.95″x2.95″) |
| Printing capacity | 1400 cycles/hour |
| Drive | Pneumatic |
| Front & back working stroke | 160 mm |
| Air requirement | 5 bar (72.5 psi) |
| Main voltage | 110V/220V 50/60Hz 40W |
| Machine size | L1050xW800xH1430 mm |
| Crated size | L1280xW1050xH1680 mm |
| Net Weight | 188kg |
| Gross Weight | 245kg |
Machine Standard Features:

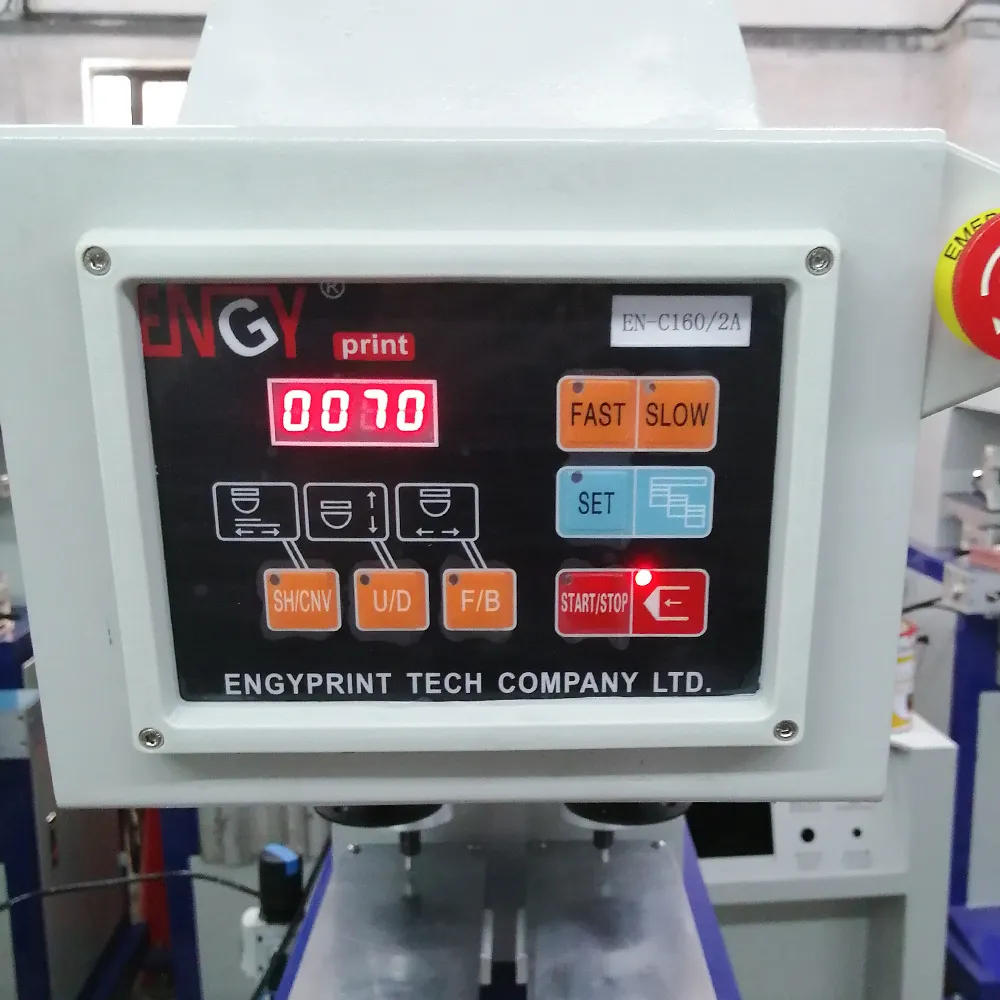

● Microprocessor operation system, electro-pneumatic control;
● 160mm working stroke, ink cup design, no ink smell and low evaporate;
● Suitable for 2 color image printing;

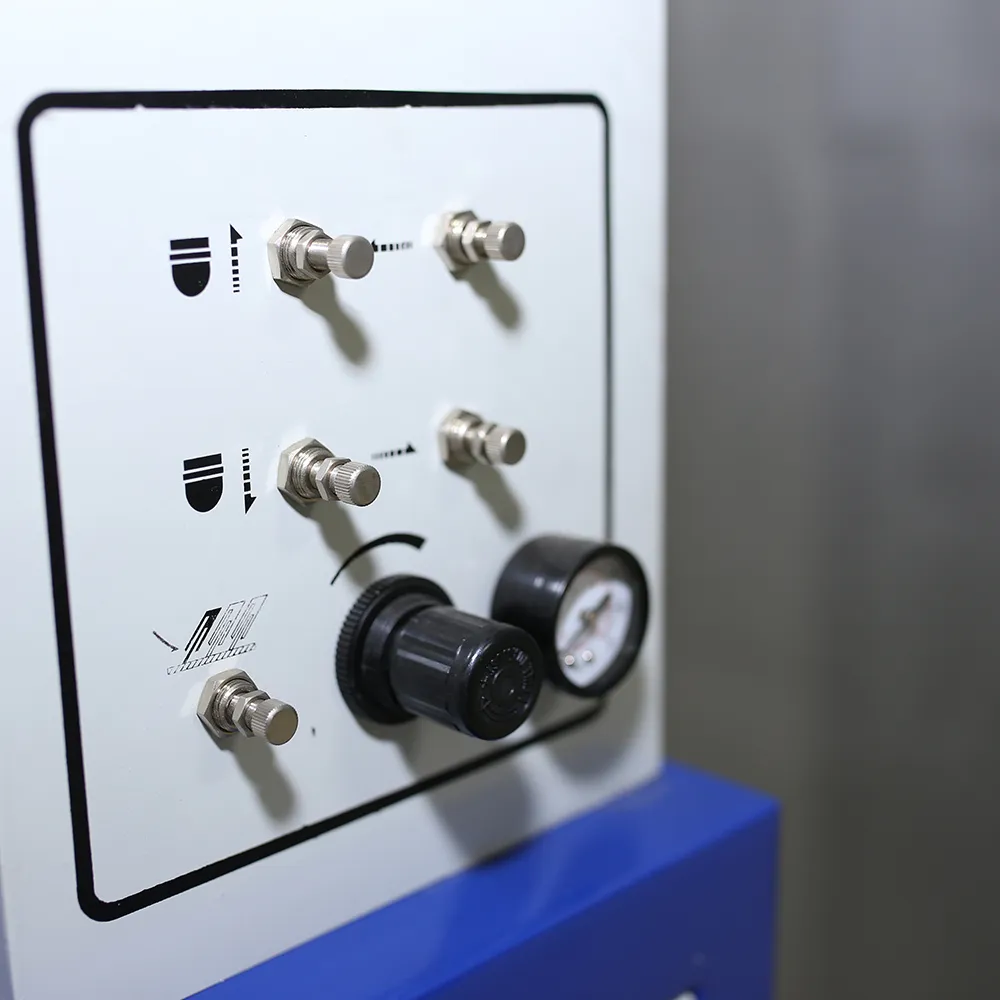

● Programmable up and down, forward and rear stroke;
● Versatile X, Y printing pad adjustment;
● Ink cup base with X, Y, Z adjustment;
● Stable, durable and fine workmanship;
● Foot pedal operation for single cycle;

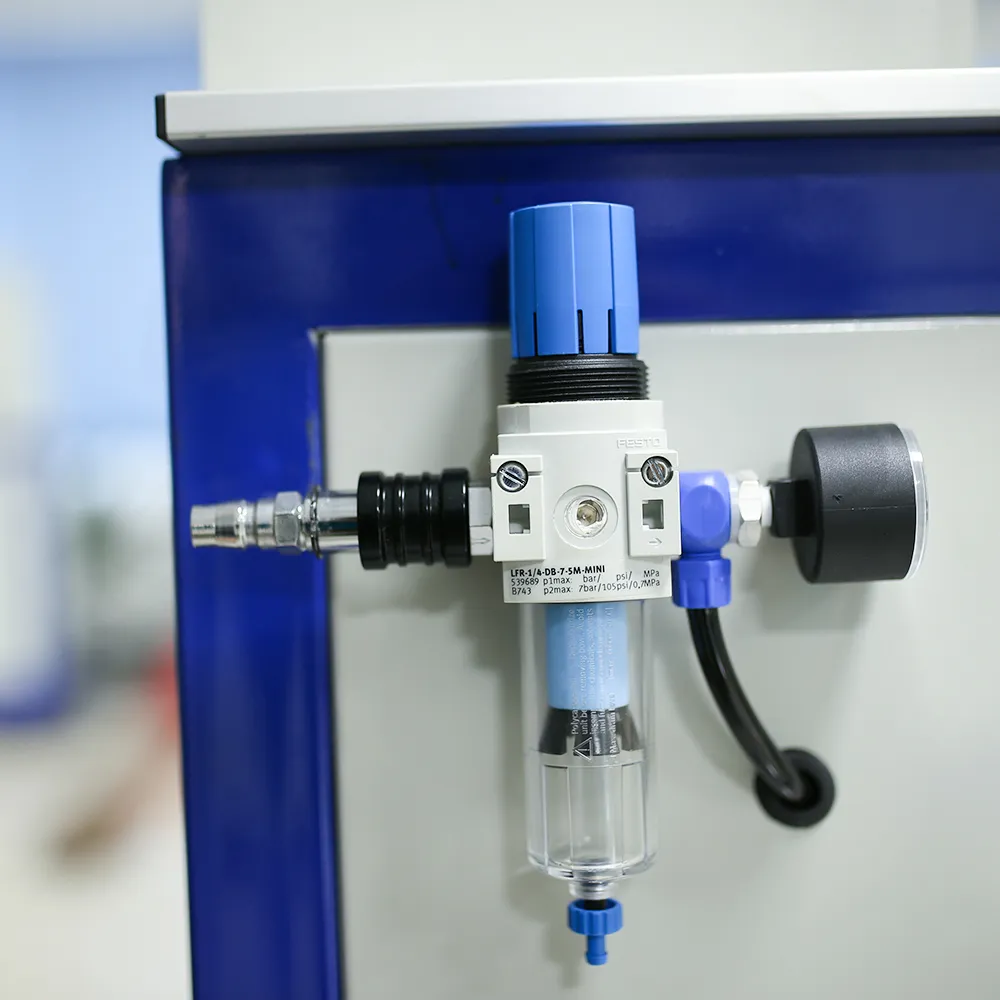

● Using FESTO or SMC pneumatic components;
● Installed safety guard and emergency stop button;
● Complying with CE safety standards;
● Operation manual is available
