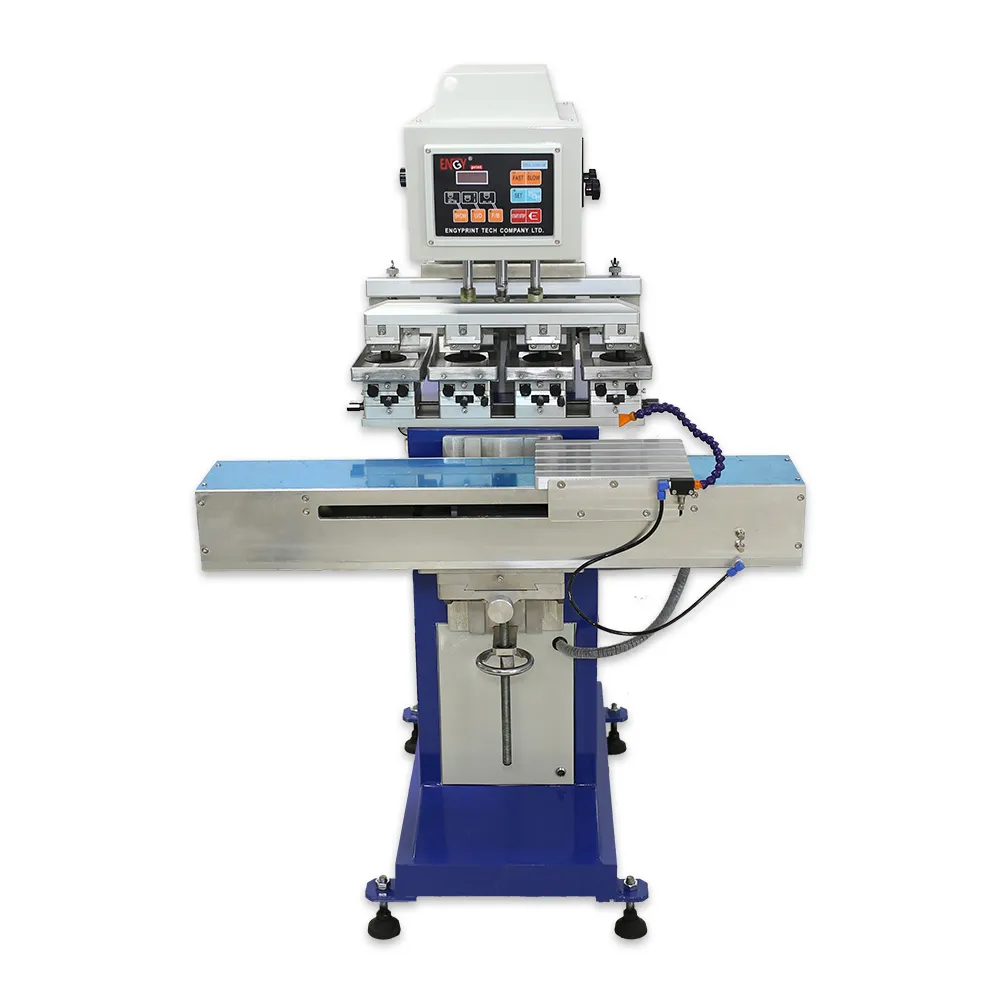

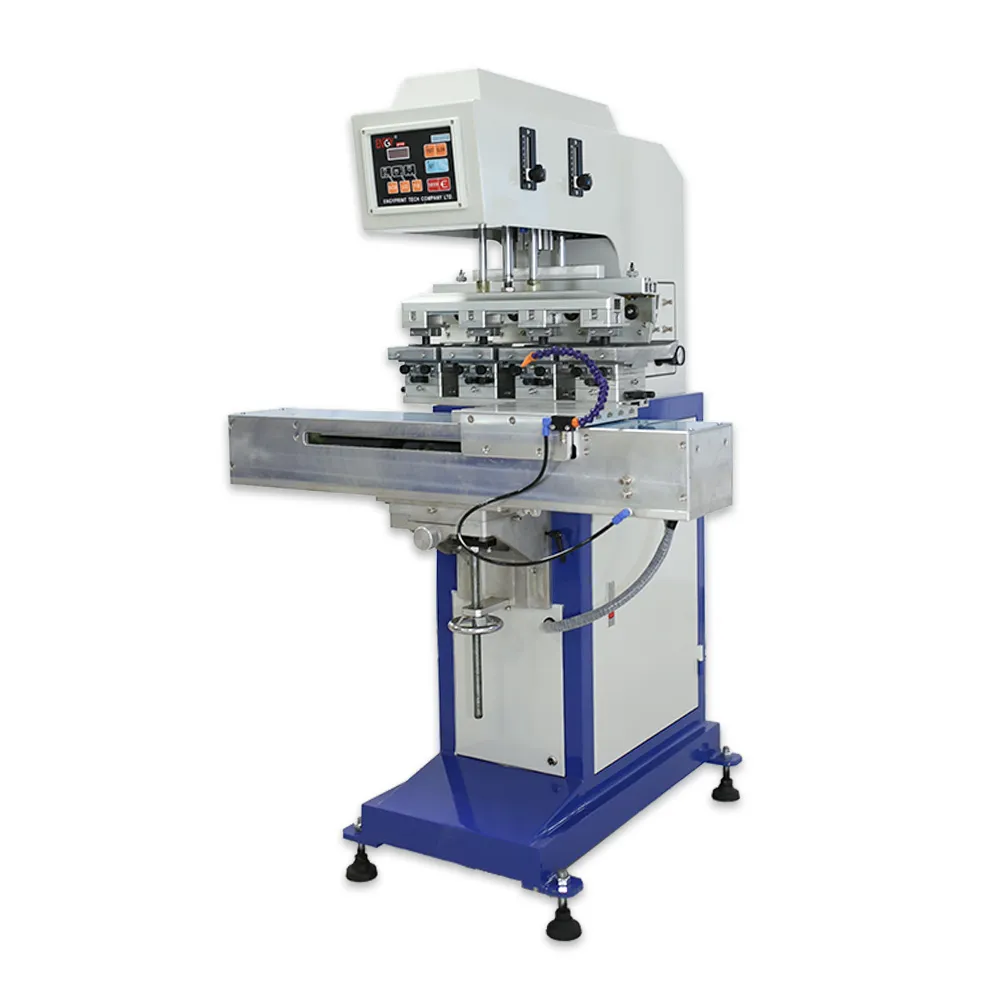

Product name: Four Color Pad Printing Machine For Lego Toys
Model Number:EN-Y160/4S
Plate Size: 100*150mm
Drive : Pneumatic ,Semi-automatic
Application : Gears, Toys, Pen, Bottle, Plastic Product, Lego,
watches, cameras, pharmaceutical and medical equipment etc.
ENGYPRINT Four Color Open Tray Pad Printing Machine Specifications:
| Model NO. | EN-Y160/4S |
| Plate size | 150 x 100mm |
| Max. printing size | 130 x 80 mm |
| Printing capacity | 900 cycles/hour |
| Drive | Pneumatic |
| Front & back working stroke | 160 mm |
| Air requirement | 5 bar (72.5 psi) |
| Main voltage | 110V/220V 50/60Hz 40W |
| Machine size | L1050 x W830 x H1430 mm |
| Crated size | L1280 x W1150 x H1680 mm |
| Net Weight | 135kg |
| Gross Weight | 195kg |
Machine Standard Features:
● Microprocessor operation system, electro-pneumatic control;
● Suitable for 4 color image printing;
● Programmable up and down, forward and rear stroke;
● Versatile X, Y printing pad adjustment;
● Ink cup base with X, Y, Z adjustment;
● Stable, durable and fine workmanship;
● Foot pedal operation for single cycle;
● Using FESTO or SMC pneumatic components;
● Installed safety guard and emergency stop button;
● Complying with CE safety standards;
● Operation manual is available
