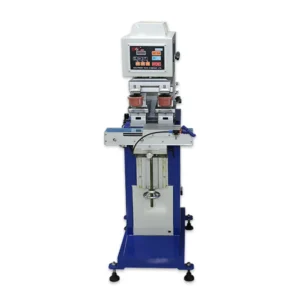

Two Color Closed Ink Cup Pad Printer With Conveyor

Product name : Two color Closed Ink Cup Pad Printer With Conveyor

Machine Type: Four Color , Closed Ink cup

Inkcup Size: OD100 ID 90 H12mm

Fixture Quantity: 10

Plate Size: 100*250mm or 100*300mm or customized

Drive : Pneumatic , Semi-automatic

Machine Brand: ENGY

Application: Toys, gears, plastics, gifts, electronics, keys, balls etc.

Product Details

ENGYPRINT Two color Closed Ink Cup Pad Printing Machine With Conveyor Specifications:

Model NO.	EN-C160/2A
Plate size	100*250mm
Max. printing size	60*110mm
Ink Cup Size	OD100 ID 90 H12mm
Printing capacity	1000 cycles/hour
Air requirement	5 bar (72.5 psi)
Main voltage	110V/220V 50/60Hz 40W
Machine size	L1000W700H1350mm
Net Weight	160kg

Machine Standard Features:

● Different machine stroke to meet diversify products printing demand.

● Closed ink cup printing system, clean and environmental friendly.

● Microprocessor control, low noise, stable performance, simple operation.

● Conveyor design can speed up the printing speed compare to a pad printer with shuttle for multi-colors printing.

● Widely applied in many industries including : Toys, gears, plastics, gifts, electronics, keys, balls etc.

● Complying with CE safety standards.

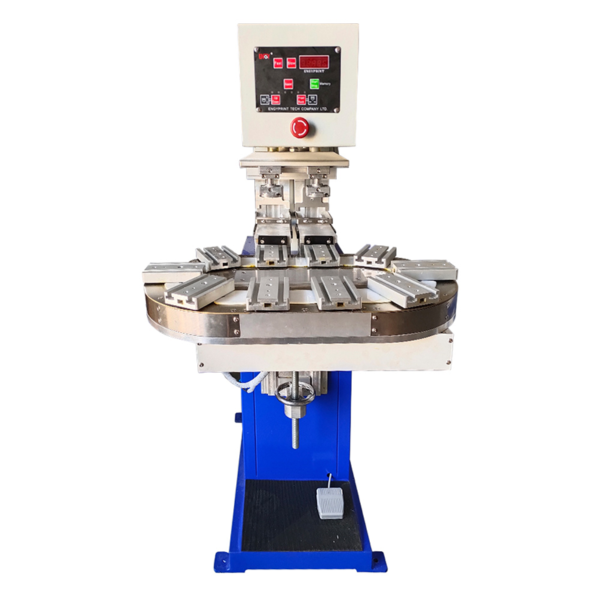

This pad printer with conveyor has 8 or 10 fixture location, which means there are 8 or 10 pieces can be printed in one cycle, the production capacity can be remarkably improved compare to the pad printer with shuttle,

it’s better to keep the product width less than 80mm.

In order to save the labor cost, Engyprint suggests to add the automatically loading system on the printer.
