Product name : Two Color Closed Ink Cup Pad Printer For Tagless Logo
Model Number:EN-C125/2
Machine Type: Two Color , Closed Ink cup
Inkcup Size: OD 90 ID 82 H12mm
Plate Size: 100*200mm
Drive : Pneumatic , Semi-automatic
Application : Garments, Pen, cap of bottle,
watches, cameras, pharmaceutical and medical equipment etc.
Machine Standard Features:
This printing technology allows one to duplicate images with any type of shading, three-dimensional and two-dimensional effect and do it with centennial precision, obtaining fantastic products (superior to screen printing).
Machine stroke is 125mm, which is suit for small item two colors printing.
Pad printing speed can be adjusted for back and forth, up and down directions.

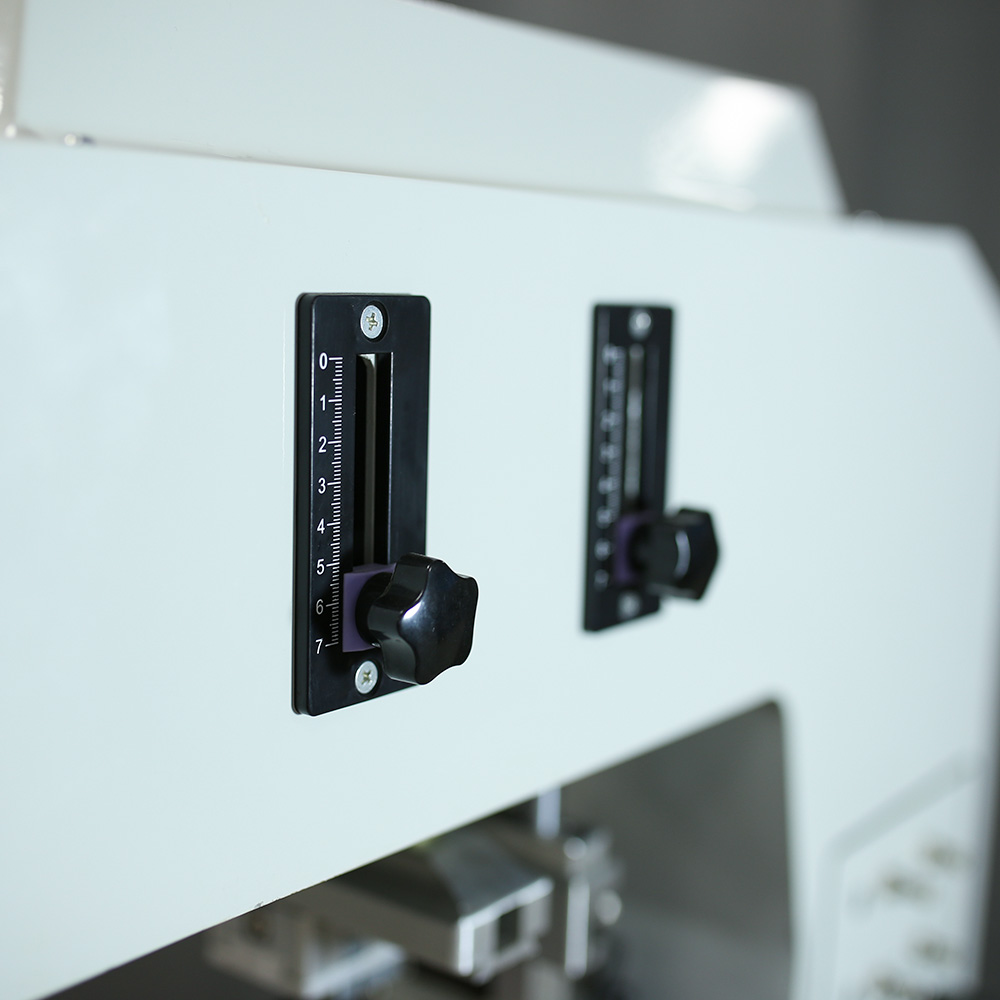

The distance between the pad & product, the pad and plate are all adjustable.
ENGYPRINT Two Color Inkcup Pad Printing Machine Specifications:
Model NO. | EN-C125/2 |
Plate size | 8″x4″ (200x100mm) |
Max. printing size | Ø60 mm (Ø2.45″ mm) |
Ink Cup Size | Ø82xØ90 mm (Ø3.2″xØ3.5″) |
Printing capacity | 1800 cycles/hour |
Front & back working stroke | 125 mm |
Air requirement | 5 bar (72.5 psi) |
Main voltage | 110V/220V 50/60Hz 40W |
Machine size | L26.8″xW18.1″xH53.1″ (680x460x1350 mm) |
Crated size | L33.5″xW22″xH61″ (850x560x1550 mm) |
Net Weight | 68kg |
Gross Weight | 209 lbs (95 kg) |
Two Color Pad Printer With Shutter For Bottle Cap
Two Color Pad Printer With shuttle for Coffee Machine
One Color Pad Printer for Garments, Tagless Logo
