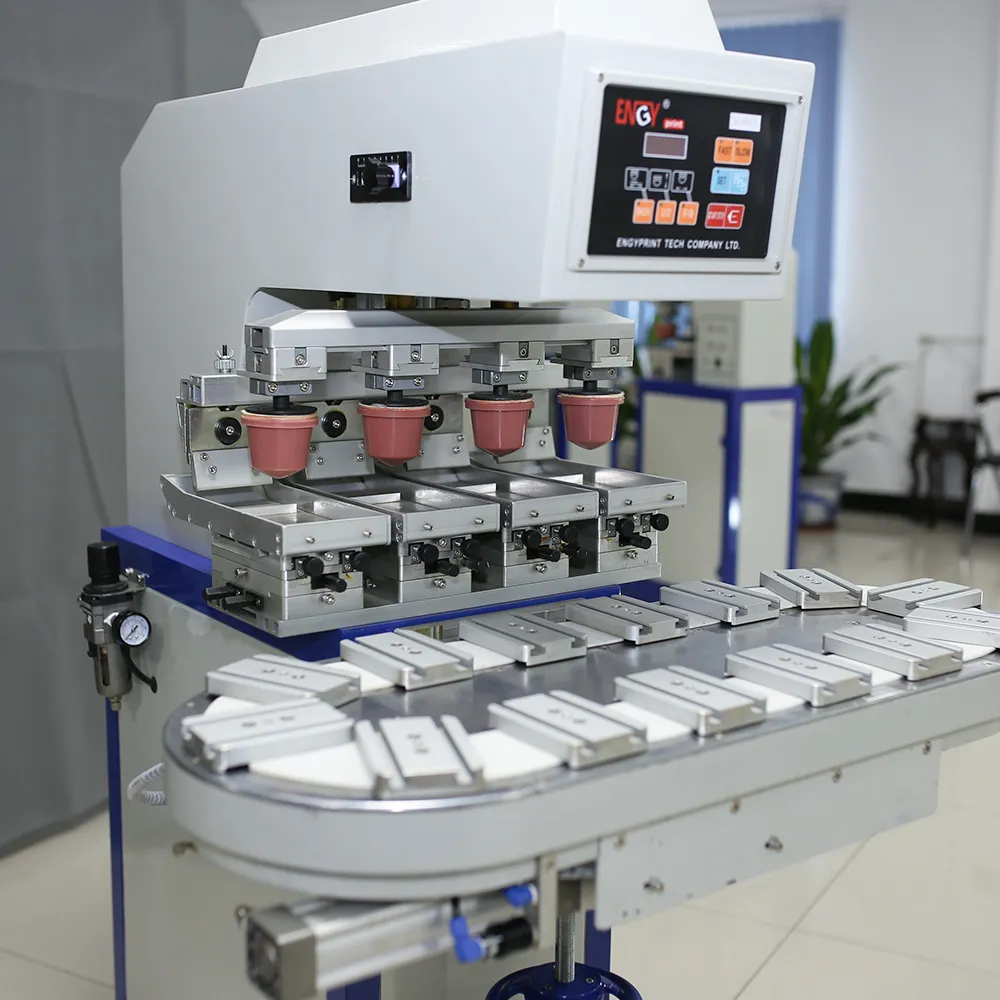

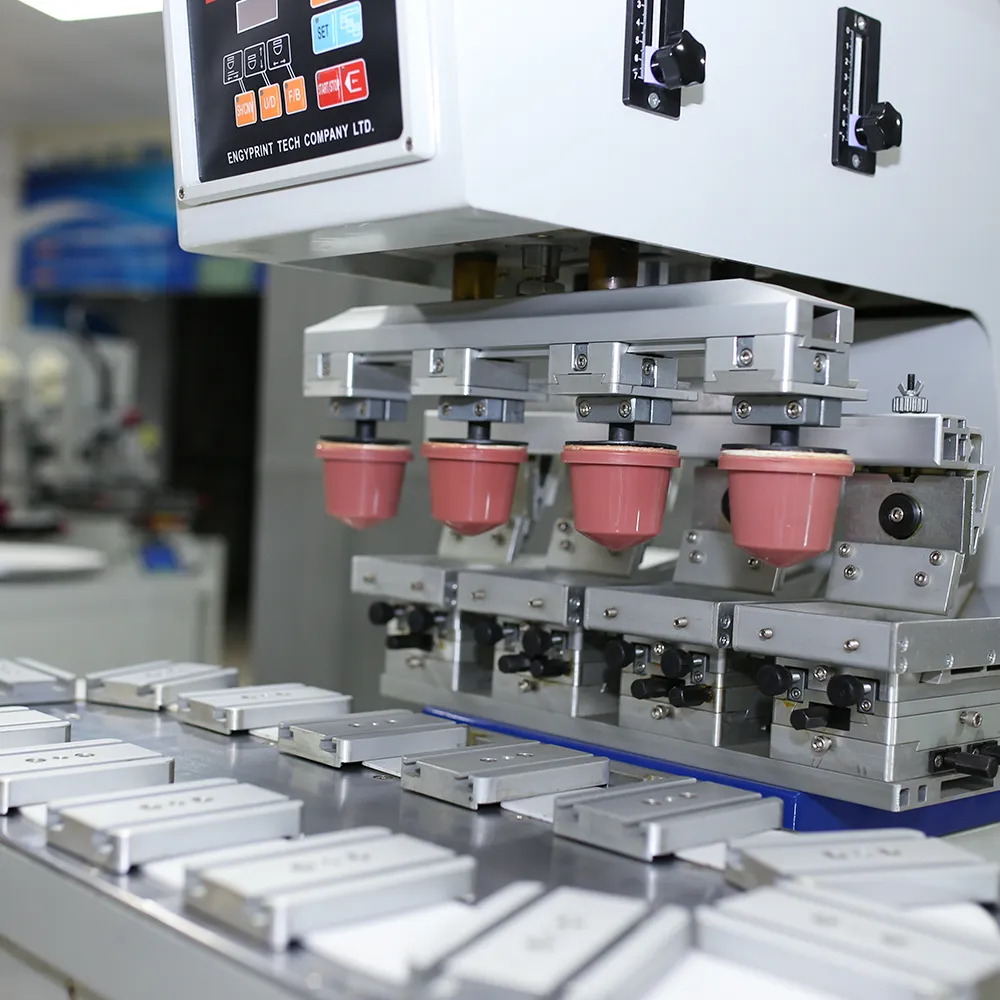

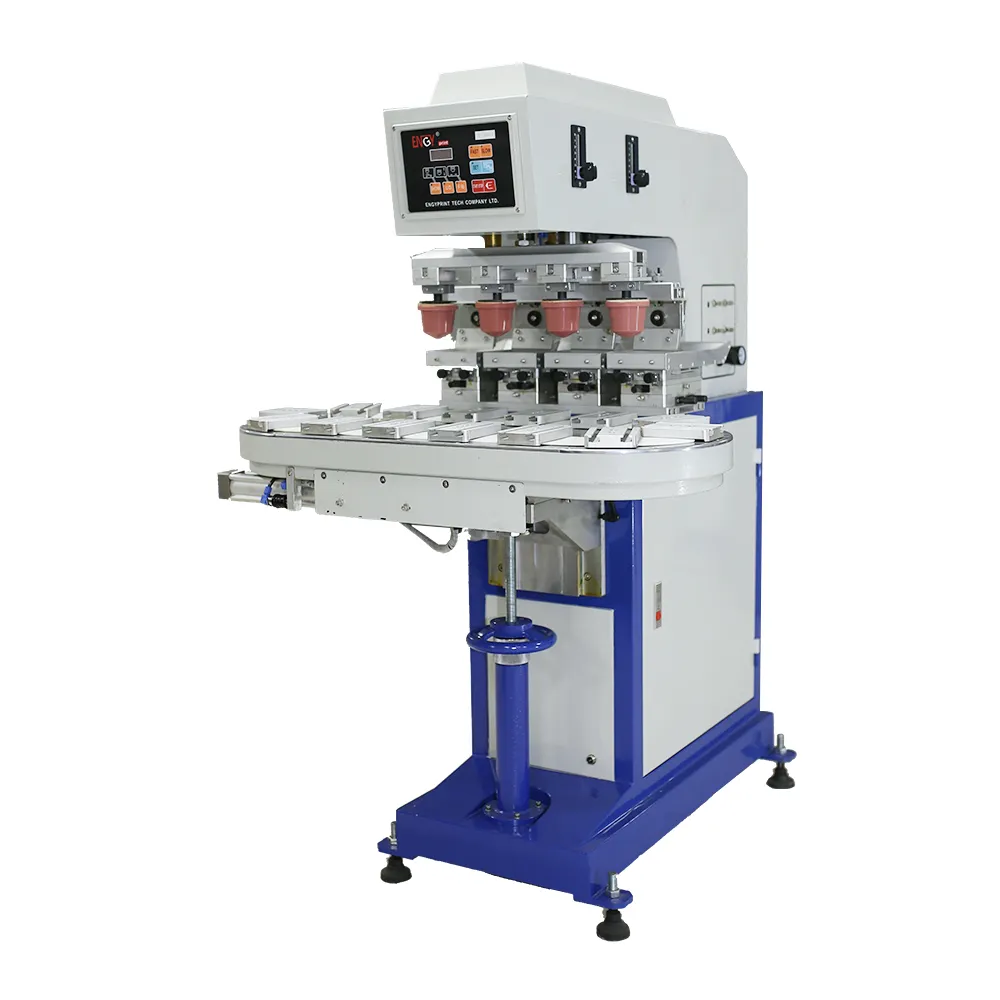

Product name: Four Color Pad Printer With Shutter For Shoes
Model Number:EN-Y200/4S
Machine Type: Four Color ,Open Tray
Plate Size: 100*200mm
Drive : Pneumatic , Semi-automatic
Application : Chips, Pen, Gloves, Bottle caps, cups, Shoes,
cameras, pharmaceutical and medical equipment etc.
ENGYPRINT Four Open Tray Pad Printer Specifications:
Model NO. | EN-Y200/4S |
Plate size | 200 x 100mm (8”x4”) |
Max. printing size | 80*150mm (3.14” x 3.93”) |
Printing capacity | 900 cycles/hour |
Front & back working stroke | 200 mm |
Air requirement | 5 bar (72.5 psi) |
Main voltage | 110V/220V 50/60Hz 40W |
Machine size | L1020xW780xH1450mm |
Crated size | L1280xW1000xH1680mm |
Net Weight | 195kg |
Gross Weight | 255kg |
Machine Standard Features:
● Microprocessor operation system, electro-pneumatic control;
● Suitable for 4 color big image printing;
● Programmable up and down, forward and rear stroke;
● Versatile X, Y printing pad adjustment;
● Ink cup base with X, Y, Z adjustment;
● Stable, durable and fine workmanship;
● Foot pedal operation for single cycle;
● Using FESTO or SMC pneumatic components;
● Installed safety guard and emergency stop button;
● Complying with CE safety standards;
● Operation manual is available
