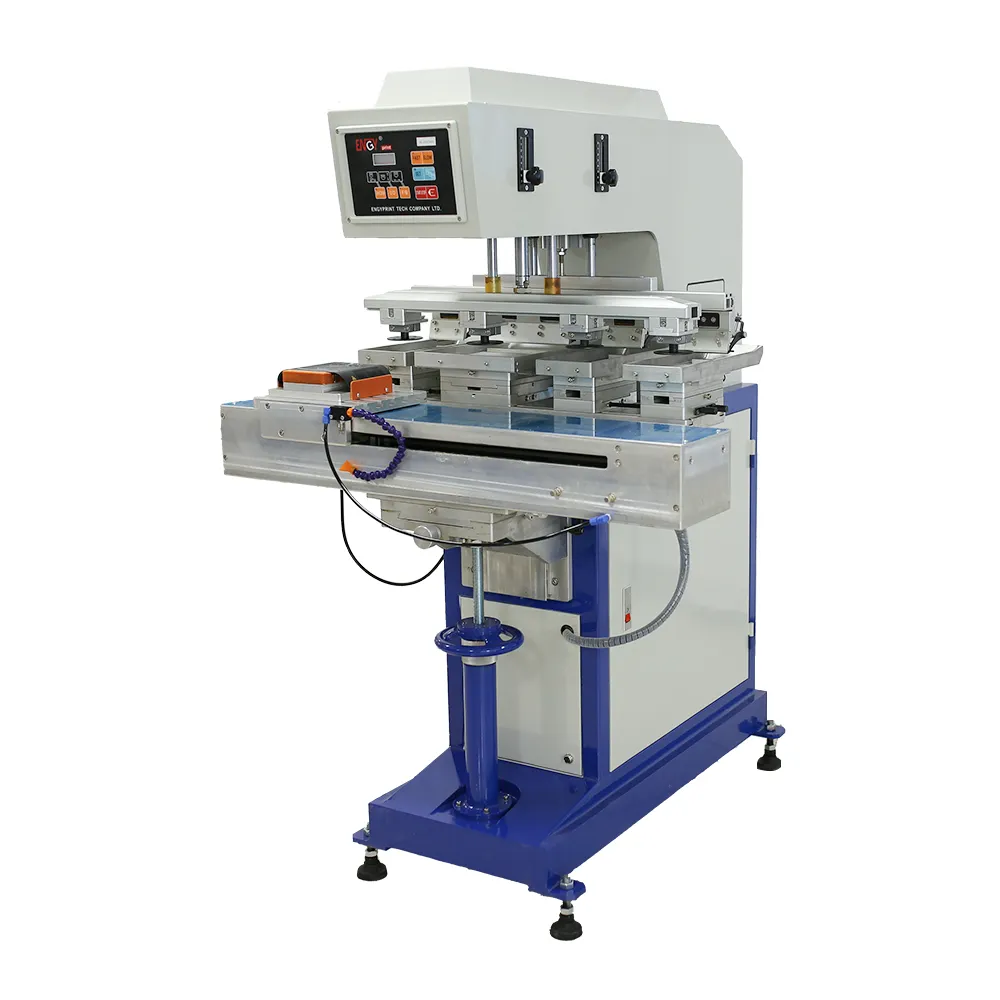

Product name: Four Color Pad Printer With Conveyor For Cosmetics
Model Number:EN-Y200/4A
Machine Type: Four Color , Open Tray
Plate Size: 100*200mm
Fixture: 14
Drive : Pneumatic2 , Semi-automatic
Application : Chips, Pen, Toys, Bottle caps, cups, cosmetics,
Cameras, pharmaceutical and medical equipment etc.
ENGYPRINT Four Color Ink cup Pad Printer Specifications:
| Model NO. | EN-Y200/4A |
| Plate size | 200 x 100mm (8”x4”) |
| Max. printing size | 100*80mm |
| Printing capacity | 800 cycles/hour |
| Front & back working stroke | 200 mm |
| Air requirement | 5 bar (72.5 psi) |
| Main voltage | 110V/220V 50/60Hz 40W |
| Machine size | L1100xW1150xH1450mm |
| Crated size | L1350xW1400xH1680mm |
| Net Weight | 220kg |
| Gross Weight | 280kg |
Machine Standard Features:
● Microprocessor operation system, electro-pneumatic control;
● Suitable for 4 color image printing;
● Programmable up and down, forward and rear stroke;
● Versatile X, Y printing pad adjustment;
● Ink cup base with X, Y, Z adjustment;
● Stable, durable and fine workmanship;
● Foot pedal operation for single cycle;
● Using FESTO or SMC pneumatic components;
● Installed safety guard and emergency stop button;
● Complying with CE safety standards;
● Operation manual is available
