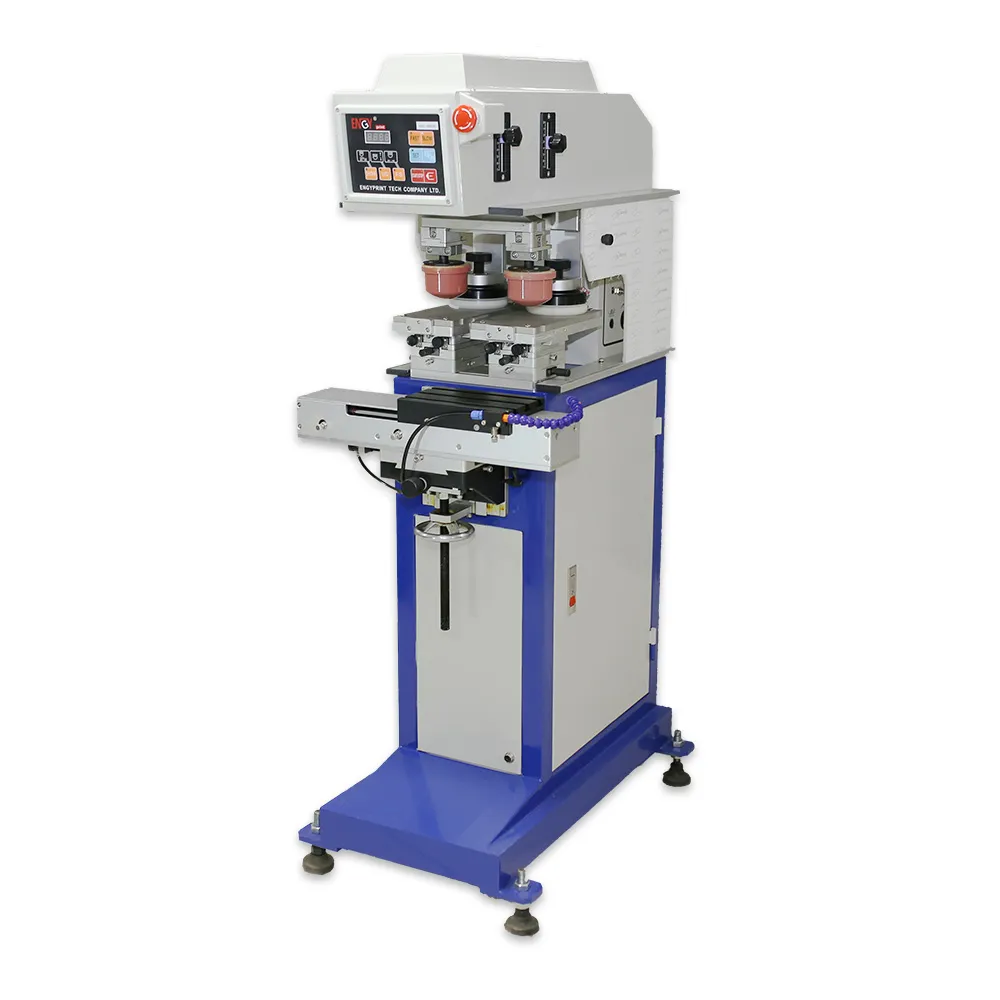

EN-C200/2 Two Color Pad Printer For Plastic Parts

Product name: Two Color Pad Printer For Tubes and Glasses

Model Number:EN-C200/2

Machine Type: Two Color , Closed Ink cup

Inkcup Size: OD 100 ID 90 H12mm

Plate Size: 100*300mm

Drive : Pneumatic , Semi-automatic

Application : Helmets, Pen, Gloves, Bottles,

watches, cameras, pharmaceutical and medical equipment etc.

Product Details

<span data-mce-type="bookmark" style="display: inline-block; width: 0px; overflow: hidden; line-height: 0;" class="mce_SELRES_start"></span><span data-mce-type="bookmark" style="display: inline-block; width: 0px; overflow: hidden; line-height: 0;" class="mce_SELRES_start"></span>

Machine Standard Features:

There are many clients use this pad printer for safety products, home appliances and plastic products printing.

Engyprint pad printer can be customized , when we use independent driver for pad, the printing product dimension can be enlarged.

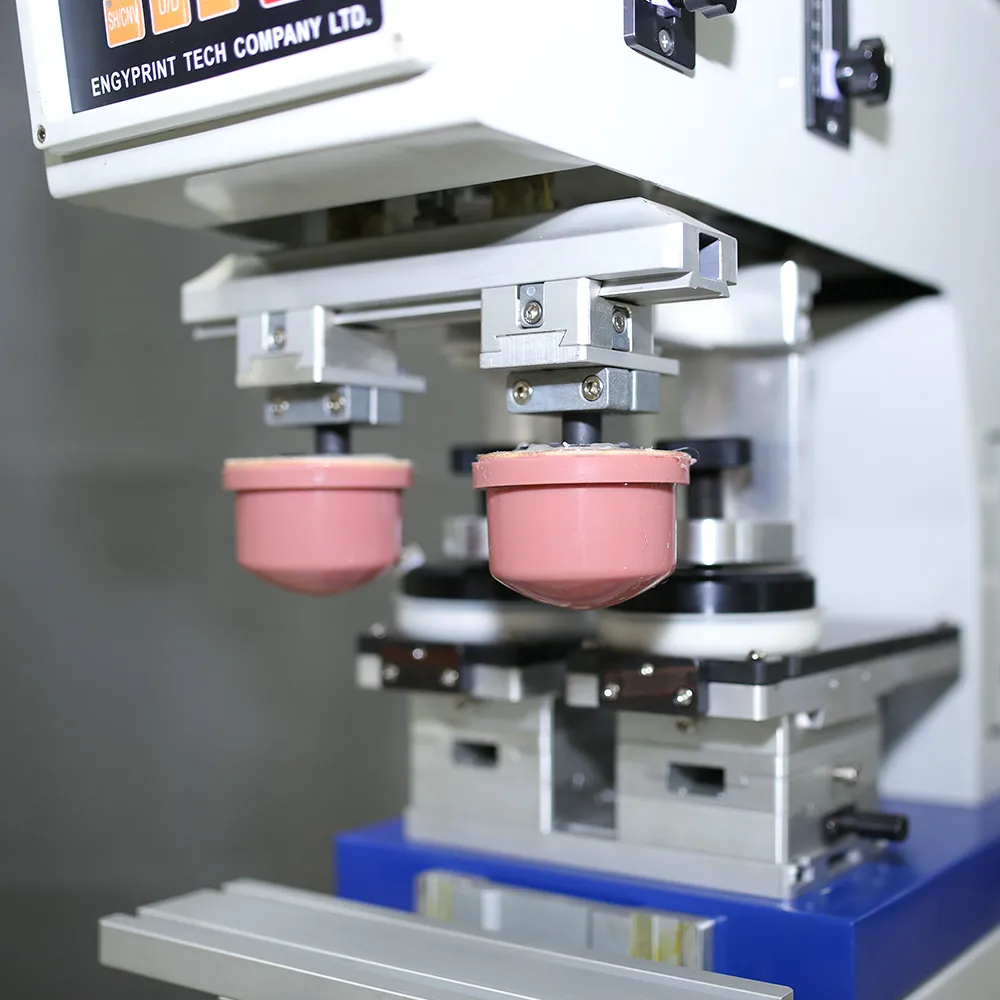

ENGYPRINT Two Color Ink cup Pad Printer Specifications:

Model NO.	EN-C200/2
Plate size	300 x 100mm (12”x4”)
Max. printing size	80*100mm (3.14” x 3.93”)

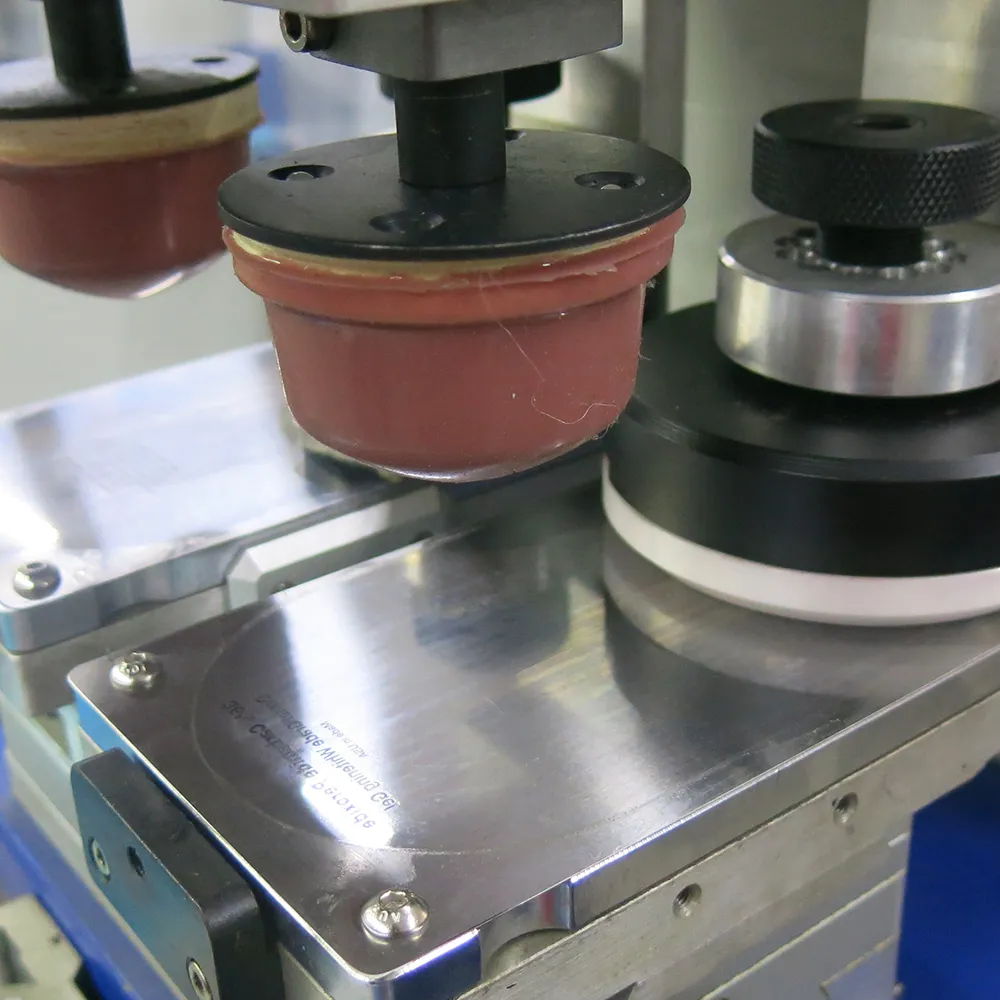

Ink Cup Size	Ø3.54″xØ3.93″(Ø90xØ100mm)
Printing capacity	1400 cycles/hour
Front & back working stroke	200 mm

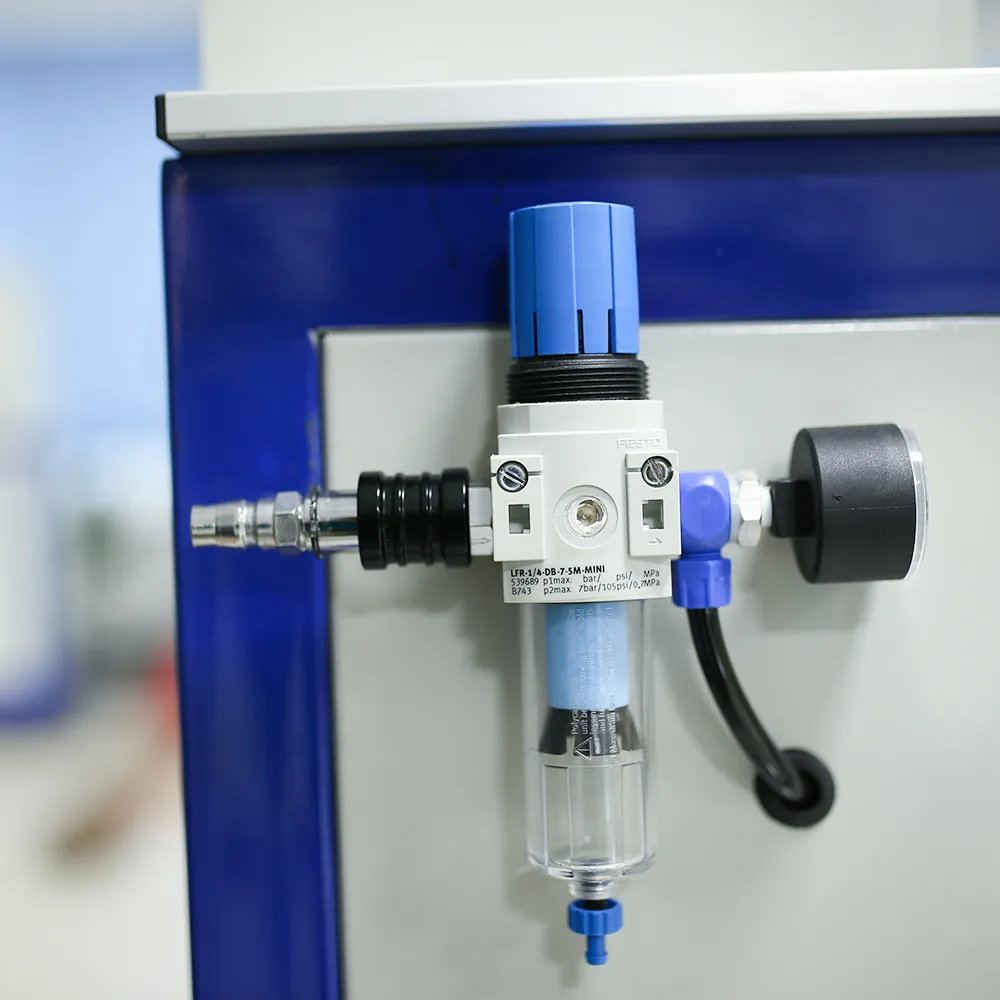

Air requirement	5 bar (72.5 psi)
Main voltage	110V/220V 50/60Hz 40W
Machine size	L40.2″xW24″xH57″ (1020x610x1450 mm)
Crated size	L43.3″xW31.9″xH63″ (1100x810x1600 mm)
Net Weight	170kg
Gross Weight	230kg
