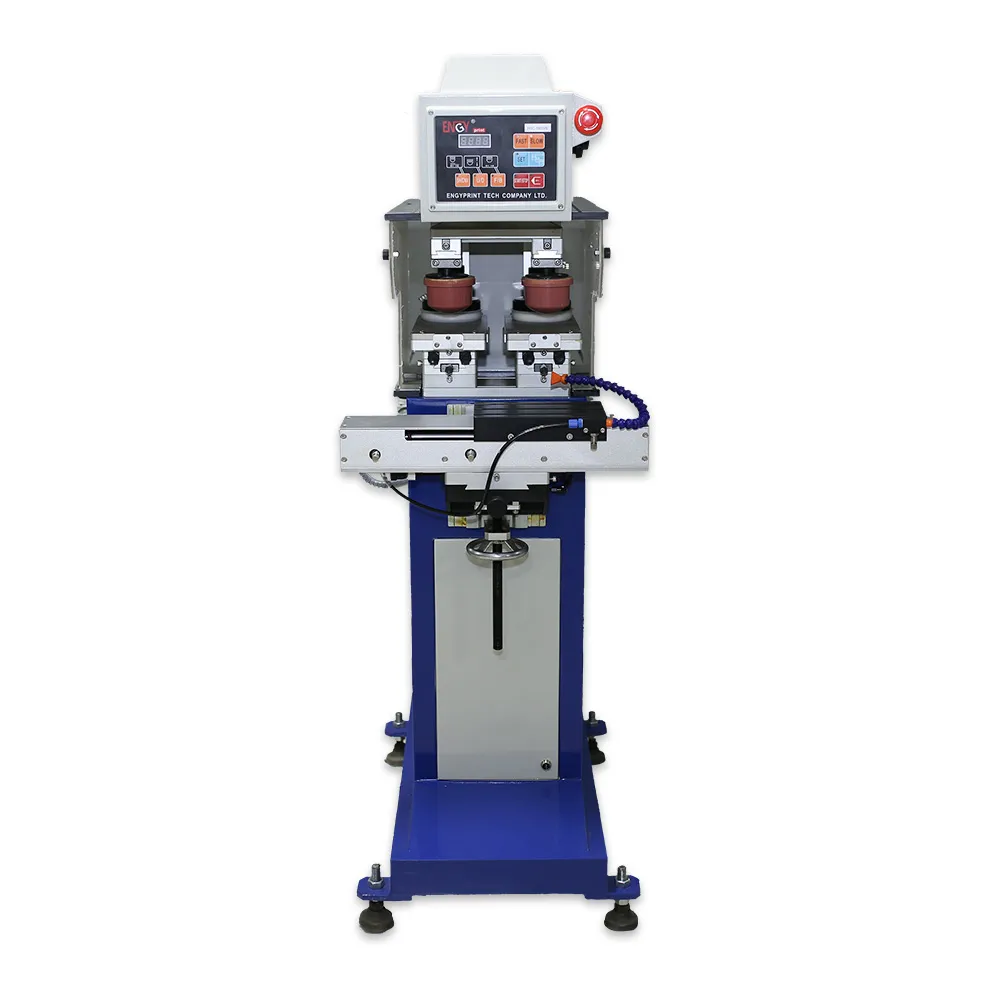

Product name:Two Color Pad Printing Machine For Home Appliance
Model Number:EN-C160/2
Machine Type: Two Colors, Closed Ink cup
Inkcup Size: OD 90 ID 82 H12mm
Plate Size: 100*250mm
Drive : Pneumatic , Semi-automatic
Application : Garments, Pen, cap of bottle,
watches, cameras, pharmaceutical and medical equipment etc.
ENGYPRINT Two Color Inkcup Pad Printing Machine Specifications:
| Model No. | EN-C160/2 |
| Plate size | 250 x 100mm (10”x4”) |
| Ink cup size (diameter) | ID82 x OD90 mm (3.23”x3.54”) |
| Max. printing size | 100 x 75 mm |
| Printing capacity | 1400 cycles/hour |
| Drive | Pneumatic |
| Front & back working stroke | 160 mm |
| Air requirement | 5 bar (72.5 psi) |
| Main voltage | 110V/220V 50/60Hz 40W |
| Machine size | L810xW510xH1430 mm |
| Crated size | L1020xW710xH1680 mm |
| Net Weight | 108kg |
| Gross Weight | 168kg |
Machine Standard Features:
● Microprocessor operation system, electro-pneumatic control;
● 160mm working stroke, ink cup design, no ink smell and low evaporate;
● Suitable for 2 color image printing;
● Programmable up and down, forward and rear stroke;
● Versatile X, Y printing pad adjustment;

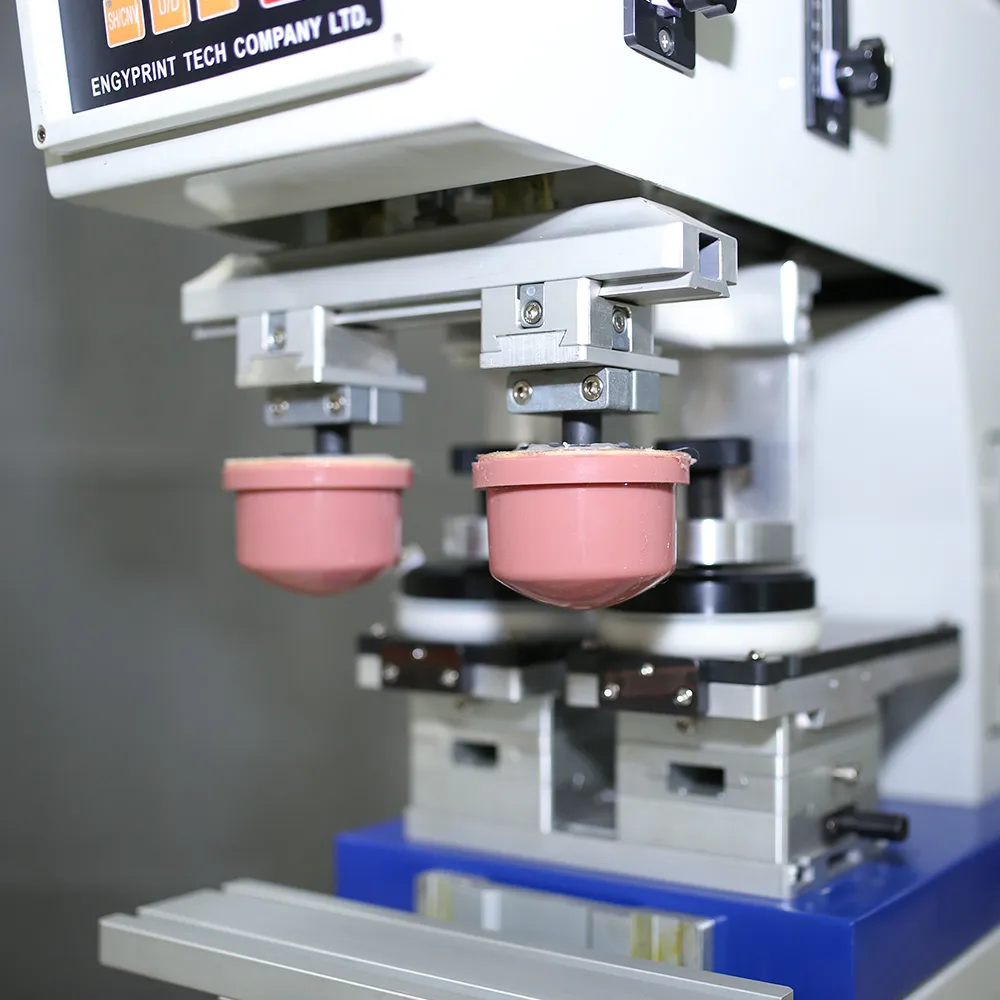

● Ink cup base with X, Y, Z adjustment;
● Stable, durable and fine workmanship;
● Foot pedal operation for single cycle;
● Using FESTO or SMC pneumatic components;
● Installed safety guard and emergency stop button;
● Complying with CE safety standards;
● Operation manual is available
