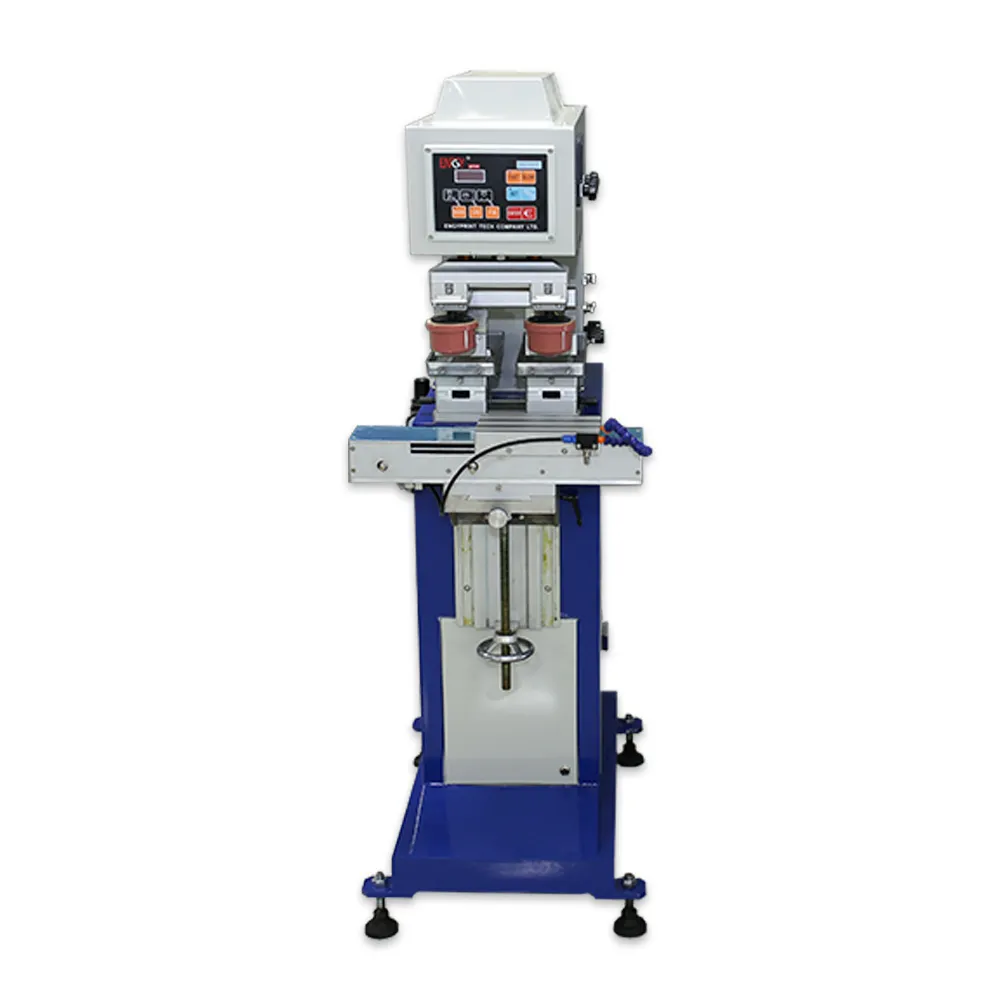

Product name : Two Color Open Tray Pad Printing Machine
Model Number:EN-Y150/2S
Plate Size: 100*150mm
Drive : Pneumatic , Semi-automatic
Application : Garments, Pen, cap of bottle, gloves, notebooks
watches, cameras, pharmaceutical and medical equipment etc.
ENGYPRINT Two Color Open Tray Pad Printing Machine Specifications:
| Model NO. | EN-Y150/2S |
| Plate size | 150 x 100mm |
| Max. printing size | 80 x 100mm |
| Printing capacity | 1500 cycles/hour |
| Drive | Pneumatic |
| Front & back working stroke | 150 mm |
| Air requirement | 5 bar (72.5 psi) |
| Main voltage | 110V/220V 50/60Hz 40W |
| Machine size | L780 x W500 x H1350 mm |
| Crated size | L1030 x W750 x H1600 mm |
| Net Weight | 95kg |
| Gross Weight | 145kg |
Machine Standard Features:
● Microprocessor operation system, electro-pneumatic control;
● Suitable for 2 color small size image printing;
● Programmable up and down, forward and rear stroke;
● Versatile X, Y printing pad adjustment;
● Ink cup base with X, Y, Z adjustment;
● Stable, durable and fine workmanship;
● Foot pedal operation for single cycle;
● Using FESTO or SMC pneumatic components;
● Installed safety guard and emergency stop button;
● Complying with CE safety standards;
● Operation manual is available
