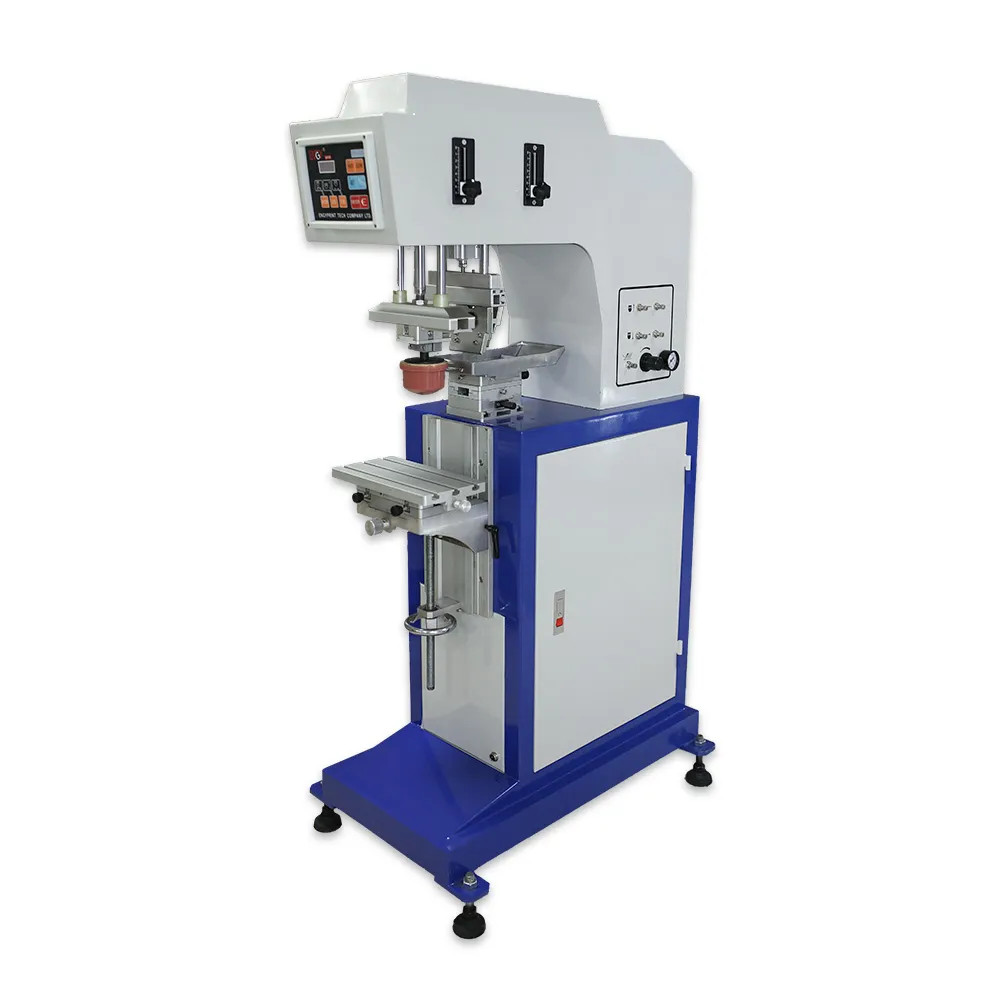

Product name:Single Color Pad Printing Machine For Bottles
Model Number:EN-Y160/1
Plate Size: 100*150mm
Drive : Pneumatic , Semi-automatic
Application : Garments, Pen, cap of bottle, bottles, notebook,
watches, cameras, pharmaceutical and medical equipment etc.
ENGYPRINT Single Color Pad Printing Machine Specifications:
| Model No. | EN-Y160/1 |
| Plate size | 150 x 100mm |
| Max. printing size | 120 x 80 mm (2.95″x2.95″) |
| Printing capacity | 1800 cycles/hour |
| Drive | Pneumatic |
| Front & back working stroke | 160 mm |
| Air requirement | 5 bar (72.5 psi) |
| Main voltage | 110V/220V 50/60Hz 40W |
| Machine size | L780 x W500 x H1350 mm |
| Crated size | L1030 x W750 x H1600 mm |
| Net Weight | 98kg |
| Gross Weight | 148kg |
Machine Standard Features:

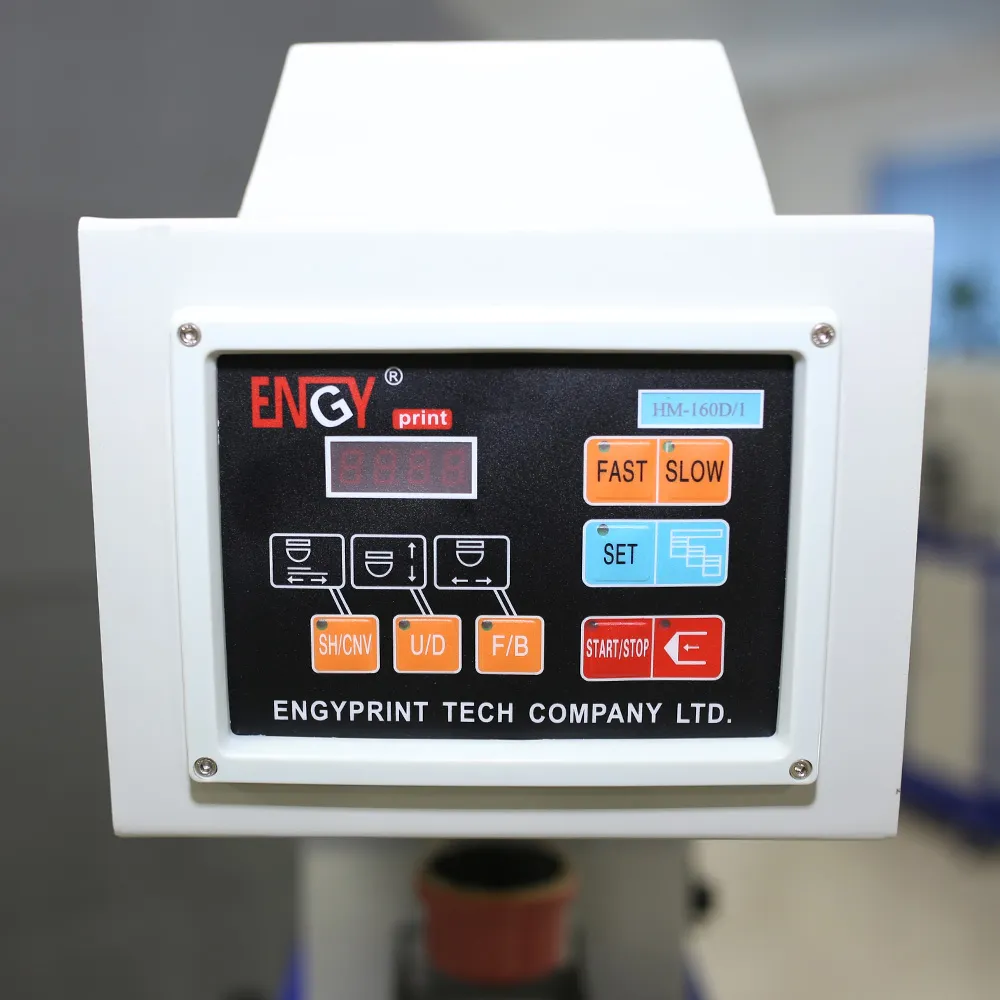

● Microprocessor operation system, electro-pneumatic control;
● Suitable for 1 color image printing;
● Programmable up and down, forward and rear stroke;
● Versatile X, Y printing pad adjustment;
● Ink cup base with X, Y, Z adjustment;
● Stable, durable and fine workmanship;
● Foot pedal operation for single cycle;
● Using FESTO or SMC pneumatic components;
● Installed safety guard and emergency stop button;
● Complying with CE safety standards;
● Operation manual is available
