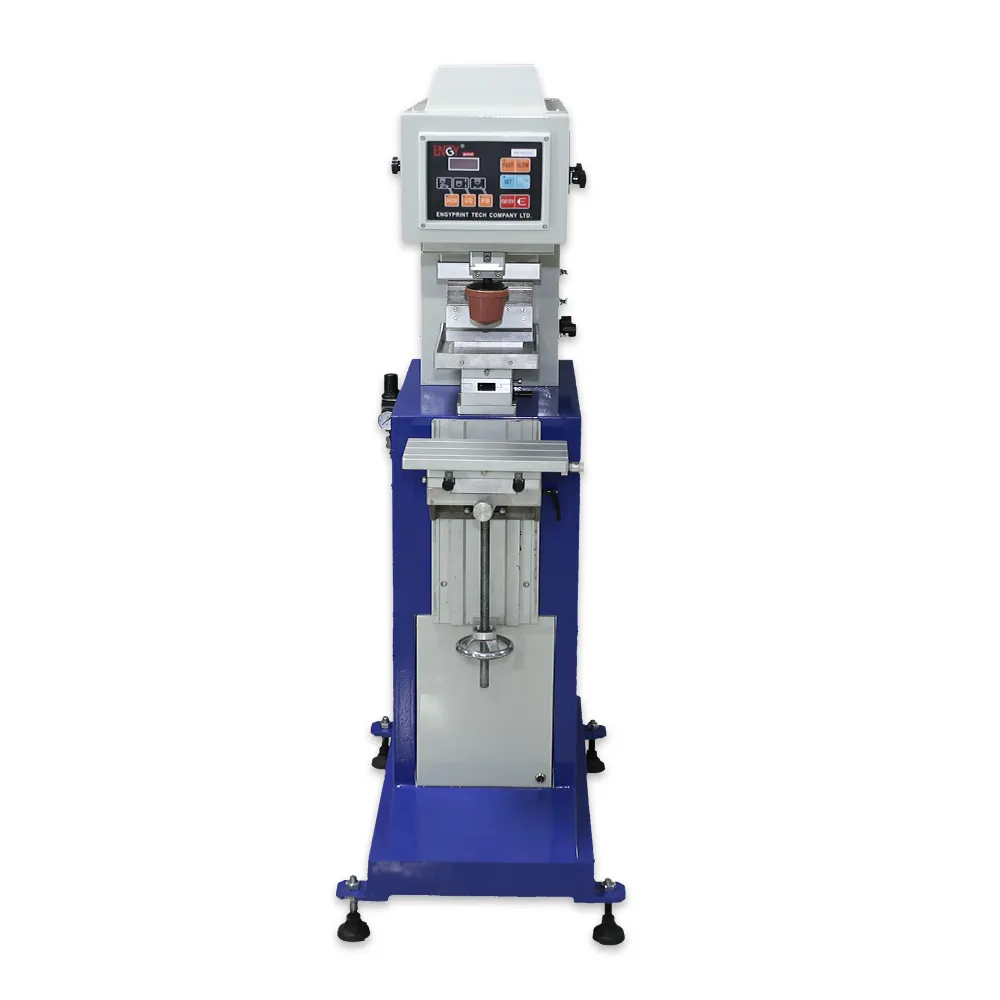

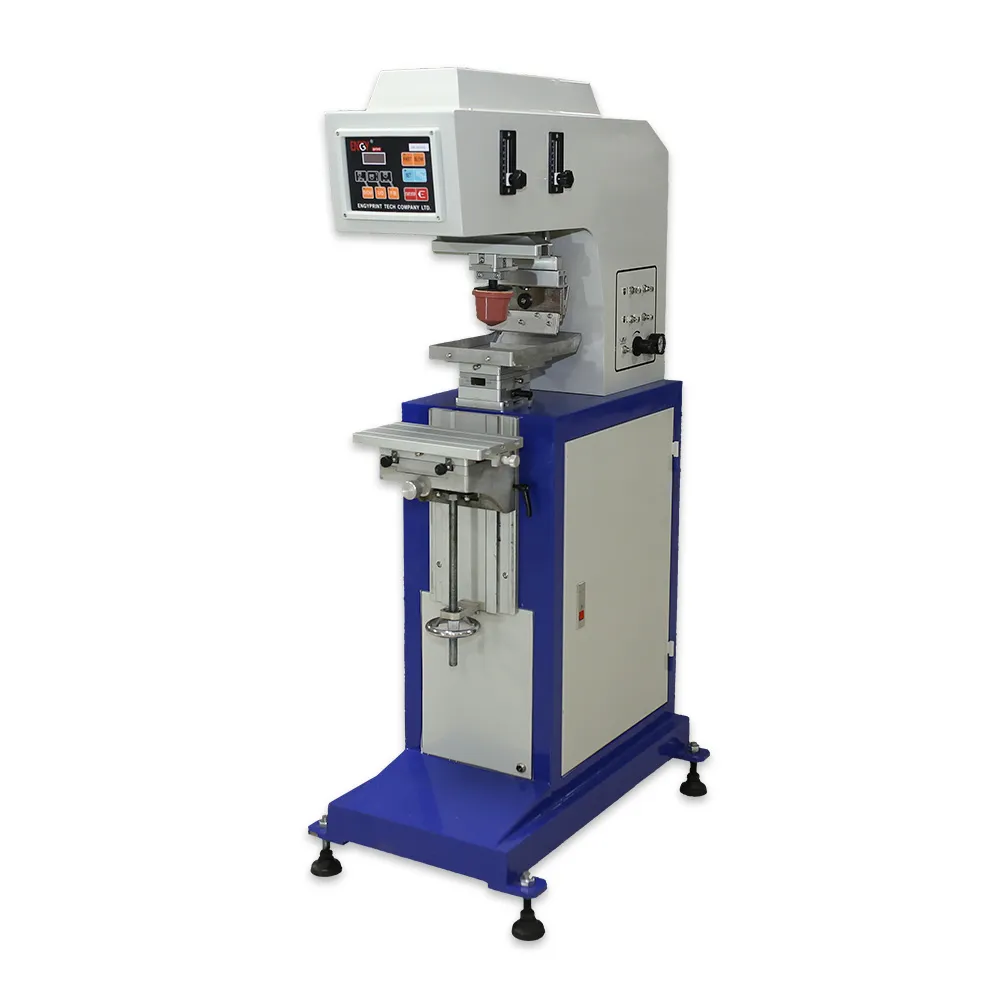

Product name: One Color Pad Printer For Helmet
Model Number:EN-Y200/1
Machine Type: One Color ,Open Tray
Plate Size: 100*200mm
Drive : Pneumatic , Semi-automatic
Application : Helmets, Pen, Gloves, Bottles,
watches, cameras, pharmaceutical and medical equipment etc.
Machine Standard Features:
It is recommended to use this open tray pad printer to print little bigger size logo, Engyprint can help to prepare the thick plate with logo if the ai or cdr drawing ( vector diagram) can be provided, the logo depth on the plate for regular products is ±0.025mm. Other required logo etching depth need to double check according to the real demand.
ENGYPRINT One Open Tray Pad Printer Specifications:
| Model NO. | EN-Y200/1 |
| Plate size | 200 x 100mm (12”x4”) |
| Max. printing size | 80*150mm |
| Printing capacity | 1400 cycles/hour |
| Front & back working stroke | 200 mm |
| Air requirement | 5 bar (72.5 psi) |
| Main voltage | 110V/220V 50/60Hz 40W |
| Machine size | L1020xW580xH1450 |
| Crated size | L1260xW830xH1680 |
| Net Weight | 150kg |
| Gross Weight | 200kg |
