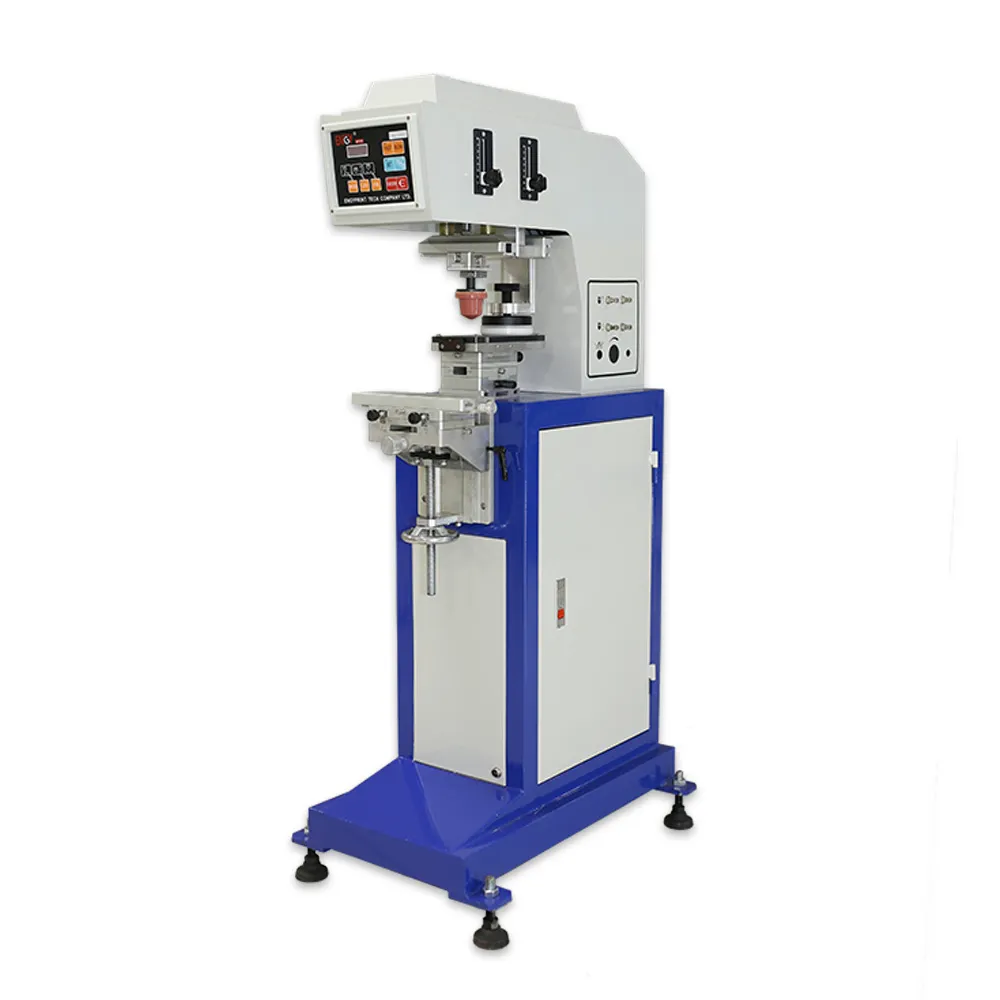

Product name : One Color Closed Ink Cup Pad Printer
Model Number:EN-C125/1
Machine Type: One Color , Closed Ink cup
Inkcup Size: OD 90 ID 82 H12mm
Plate Size: 100*200mm
Drive : Pneumatic , Semi-automatic
Application : Garments, Pen, cap of bottle,
watches, cameras, pharmaceutical and medical equipment etc.
ENGYPRINT Single Colour Inkcup Pad Printing Machine Specifications:
| Model NO. | EN-C125/1 |
| Plate size | 8″x4″ (200x100mm) |
| Max. printing size | Ø70 mm (Ø2.75″ mm) |
| Ink Cup Size | Ø82xØ90 mm (Ø3.2″xØ3.5″) |
| Printing capacity | 2600 cycles/hour |
| Front & back working stroke | 125 mm |
| Air requirement | 5 bar (72.5 psi) |
| Main voltage | 110V/220V 50/60Hz 40W |
| Machine size | 680x460x1310 mm |
| Crated size | 850x610x1500 mm |
| Net Weight | 68kg |
| Gross Weight | 209 lbs (95 kg) |
Machine Standard Features:

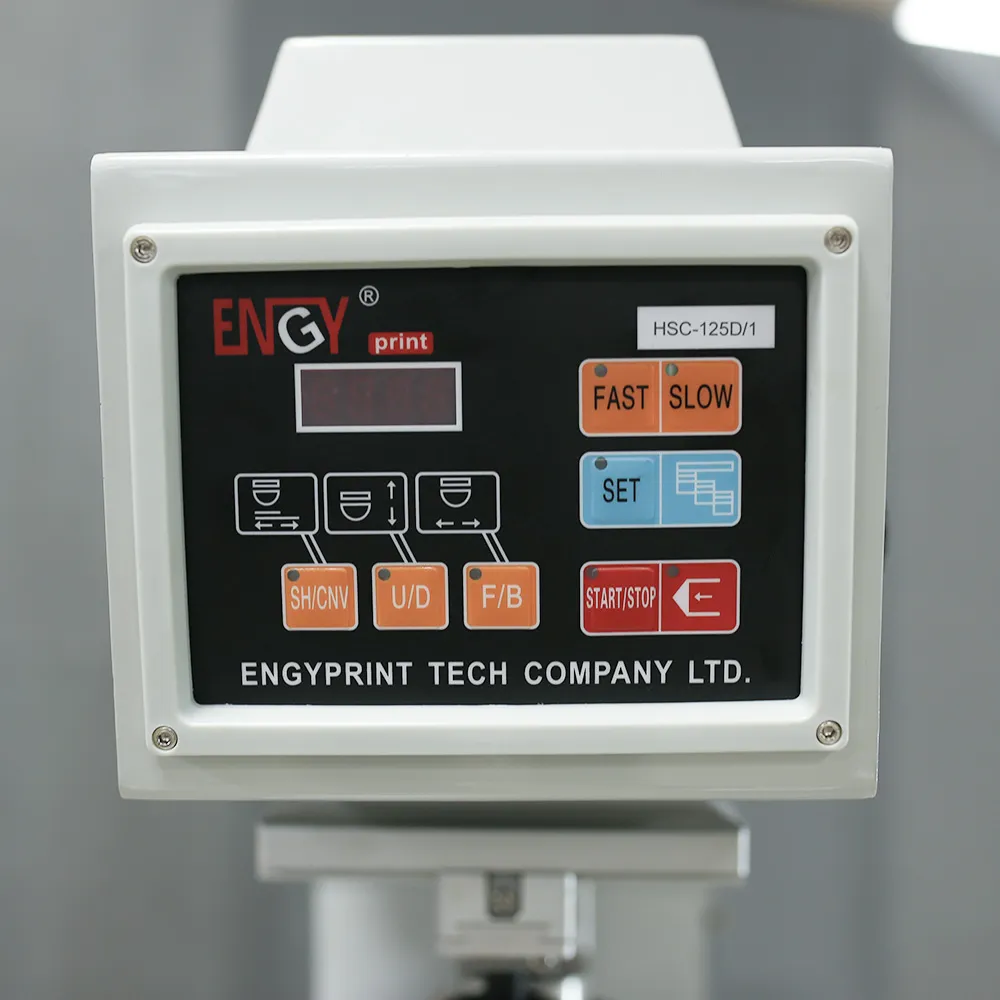

● Microprocessor operation system, electro-pneumatic control;
● 125mm working stroke, ink cup design, no ink smell and low evaporate;
● Suitable for 1 color small size image printing;
● Programmable up and down, forward and rear stroke;

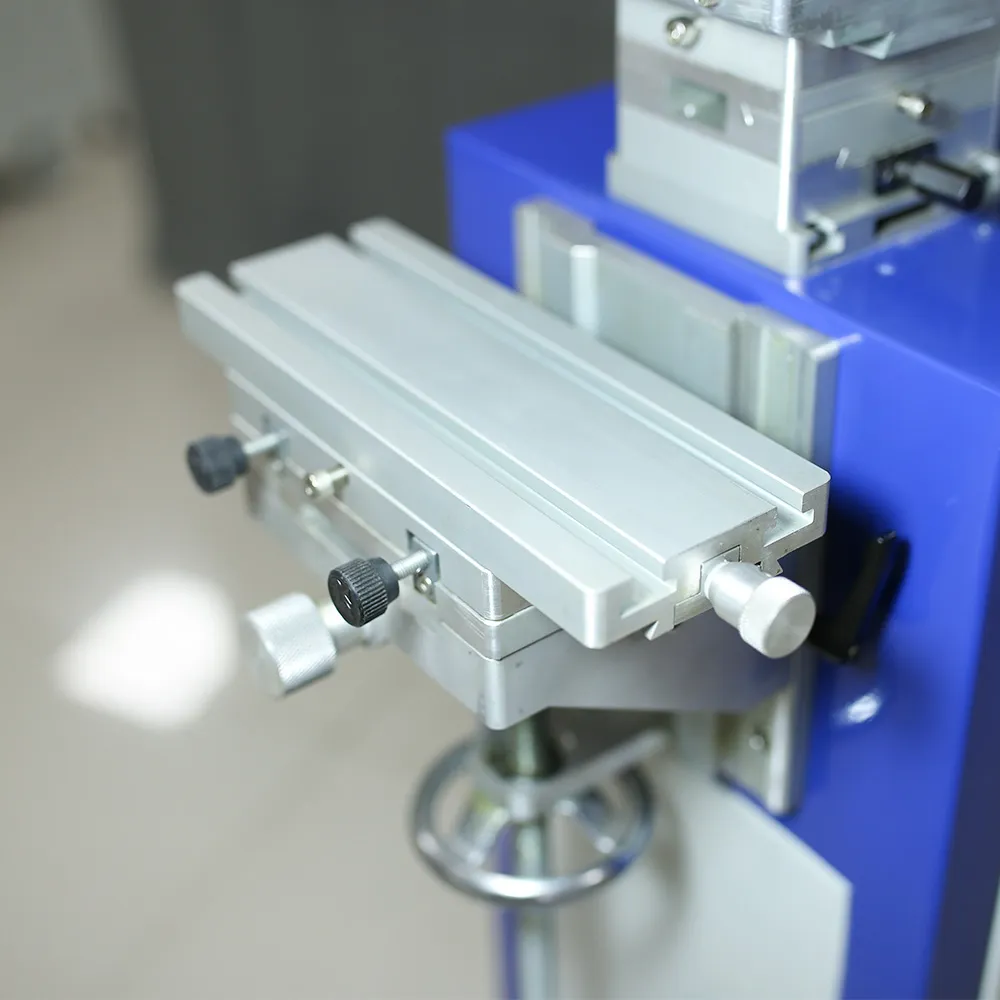

● Versatile X, Y printing pad adjustment;
● Ink cup base with X, Y, Z adjustment;
● Stable, durable and fine workmanship;
● Foot pedal operation for single cycle;
● Using FESTO or SMC pneumatic components;
● Installed safety guard and emergency stop button;
● Complying with CE safety standards;
● Operation manual is available
