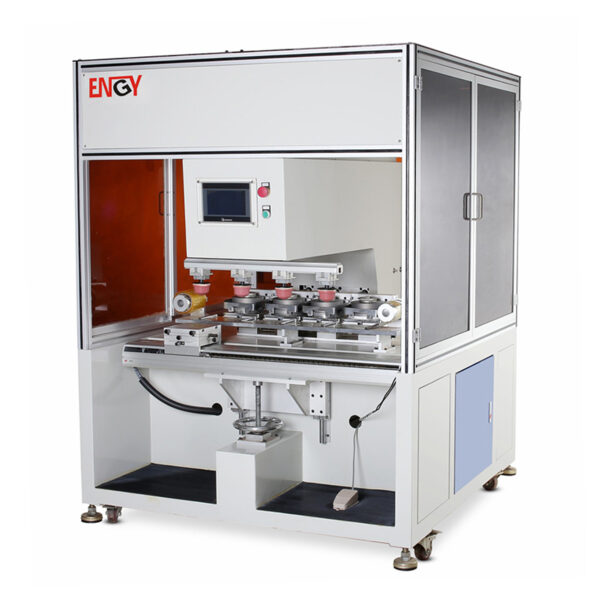

Four Color Servo Driver Closed Ink Cup Pad Printer

Model Number: EN-400/SE

Machine Type: Four Color, Closed Ink Cup

Drive : Pneumatic  Servo Motor

Plate dimension: 100*250 or 150*350mm

Control: PLC

Pad Quantity: Can be customized according to the production speed requirement

Application :Home Appliance Plastic Parts, Electronics Parts, Toys etc.

Product Details


●  Touch screen, PLC control, multiple printing mode options

●  Shuttle table, Taiwan Shangyin linear , Mitsubishi servomotor drive

●  Closed ink cup design, environmental protection, and ink saving

●  Independent servo motor for ink cup to ensure the smoothness of scraping ink

●  Special ink cup and plate replacement system to meet the different size requirements of product logos

●  Servo motor drive in back and forth direction,through the fine-tuning of parameters, to achieve the high precision printing requirements

●  Servomotor drive for pad ensures high-speed , stable printing and meets high-quality printing  requirements

●  Specially customized larger worktable to ensure the stability of the machine during printing

●  Independent pad cleaningsystem to ensure printing clarity

●  Customized service is available when needed

Four Color Servo Driver Closed Ink Cup Pad Printer Specifications:

Model NO. EN-400/SE
Plate Dimension: 100*250 or 150*350mm
Printing capacity 800cycle/hour
Air requirement 5 -7 bar (72.5 psi)
Printer max. back and forth stroke 1100mm
Printer Shuttle max stroke ⌀90mm / ⌀140mm
Main voltage 110V/220V 50/60Hz 2KW
Machine size L1650*W1200*H1650mm
Crated size L1950 x W1500x H1960 mm
Net Weight 320kg
Gross Weight 410kg

This is a pad printer designed for high-speed, high-precision pad printing. It is driven by Japanese Mitsubishi servo motor, can runs at high speed without any vibration.
