The EN-YS500 semi-automatic screen printing machine is designed for high-precision printing on round bottles, oval containers, cups, and flat materials. The machine utilizes a pneumatic drive and programmable electronic control system, along with a vertical locking head, linear ball bearings, and shock-absorbing cylinders to ensure smooth operation and precise repeatability. A built-in synchronous bottle inflation system effectively supports thin-walled plastic containers, preventing deformation under pressure during printing. We offer customized fixtures, squeegee angle adjustment (0-15°), and pressure control (2-4 bar) based on the substrate shape, material characteristics, or user process requirements to ensure clear ink transfer and sharp edges. The machine features a robust cast iron frame, and heat-treated hardened shafts combined with precision guide rails maintain low internal stress and long-term dimensional stability even during continuous production of up to 700 cycles per hour. Changeovers are quick, and maintenance is easy.

YS500 screen printing machine

The EN-YS500 semi-automatic screen printing machine is designed for high-precision printing on round bottles, oval containers, cups, and flat materials. The machine utilizes a pneumatic drive and programmable electronic control system, along with a vertical locking head, linear ball bearings, and shock-absorbing cylinders to ensure smooth operation and precise repeatability. A built-in synchronous bottle inflation system effectively supports thin-walled plastic containers, preventing deformation under pressure during printing. We offer customized fixtures, squeegee angle adjustment (0-15°), and pressure control (2-4 bar) based on the substrate shape, material characteristics, or user process requirements to ensure clear ink transfer and sharp edges. The machine features a robust cast iron frame, and heat-treated hardened shafts combined with precision guide rails maintain low internal stress and long-term dimensional stability even during continuous production of up to 700 cycles per hour. Changeovers are quick, and maintenance is easy.

Product Details

Basic Information

Equipment type
Semi-automatic screen printing machine
Model
EN-YS500
Drive system
Pneumatic
Print modes
Flat, cylindrical, oval
Max. print area (round)
Ø 350 mm (13.78″)
Max. print area (oval)
1,090 mm arc length (42.91″)
Max. print area (flat)
300 × 950 mm
Worktable size
350 × 1,000 mm
Max. screen frame size
480 × 1,180 mm
Key selling points
Bottle inflation system, quick tooling change, programmable pneumatic control, high positioning accuracy, durable cast-iron frame
Application
Bottles, cups, cosmetic tubes, syringes, gift boxes, drinkware, promotional items
Cycle speed
Up to 700 cycles/hour
Dimensions (L×W×H)
1,650 × 1,320 × 1,400 mm
Net weight
277 kg

Advantages

Pneumatic drive with programmable control ensures smooth, vibration-damped motion and repeatable print cycles, reducing operator fatigue and part variation.
Synchronized bottle inflation system supports thin-walled plastic and metal containers during the print stroke, preventing collapse and ensuring even ink deposition on challenging substrates.
Quick-change tooling and universal fixture bar enable fast switchover between round, oval, and flat parts, maximizing machine utilization in high-mix production environments.

We maintain printing accuracy according to the substrate material, part geometry, and user-specific requirements. A suitable squeegee angle (adjustable 0–15°) must balance ink shear sharpness with even pressure distribution, ensuring crisp image transfer without streaking or edge blurring. The machine’s linear motion system features hardened and precision-ground shafts combined with shock-absorbed pneumatic cylinders, achieving stable motion hardness and minimal internal stress. The heavy cast-iron frame and vertical head locking mechanism guarantee that the machine will not deform during continuous high-speed operation, delivering long-term dimensional stability and consistent print registration.

Image Alt Text Suggestions

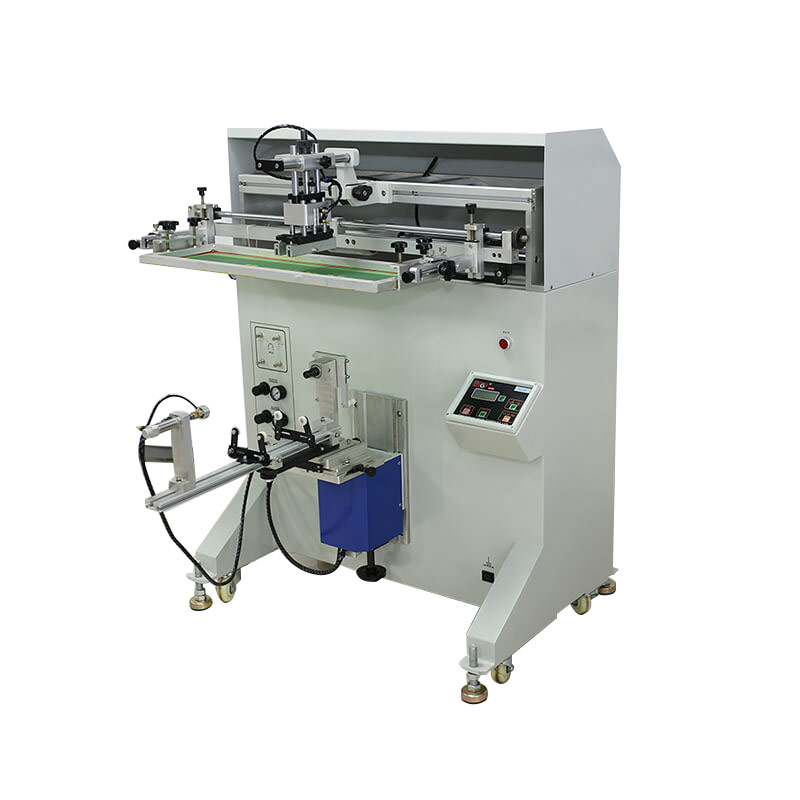

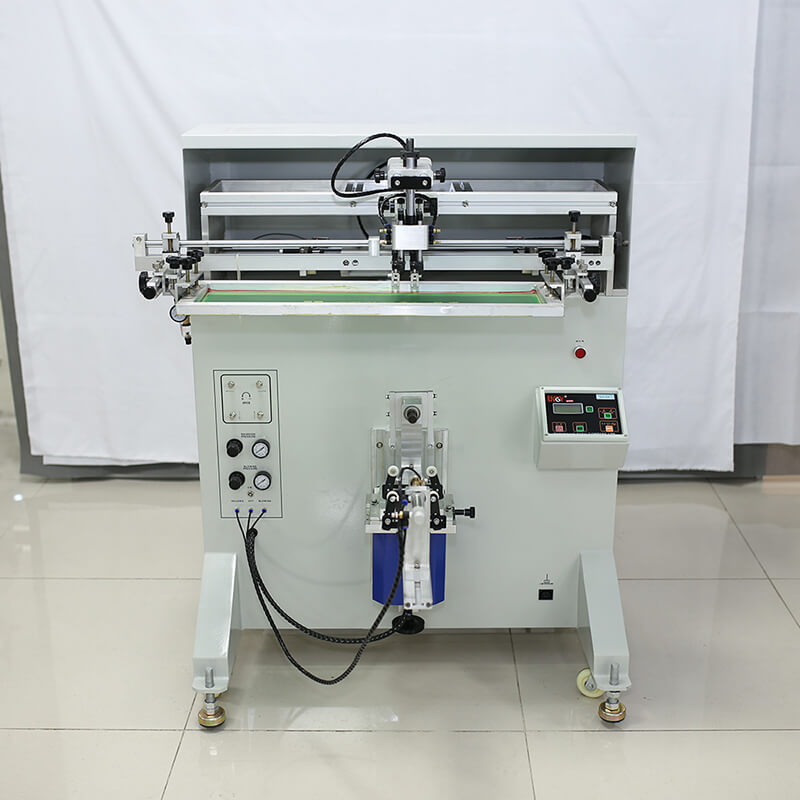

EN-YS500 semi-automatic screen printing machine with bottle inflation system
EN GYPRINT EN-YS500 printing a logo on a stainless steel water bottle

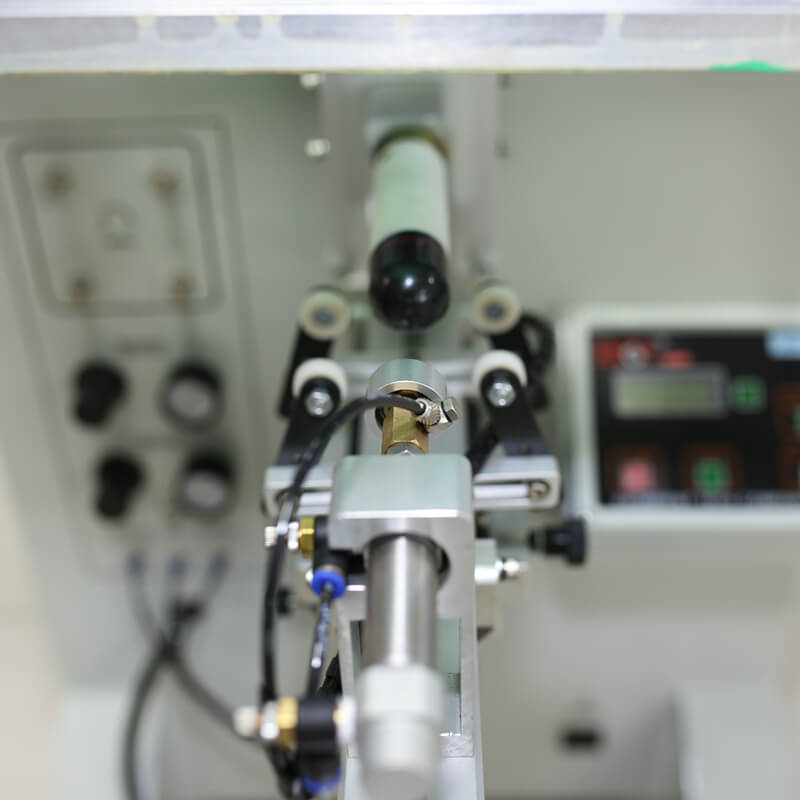

Cylindrical screen printer EN-YS500 with quick-change fixture and adjustable squeegee
