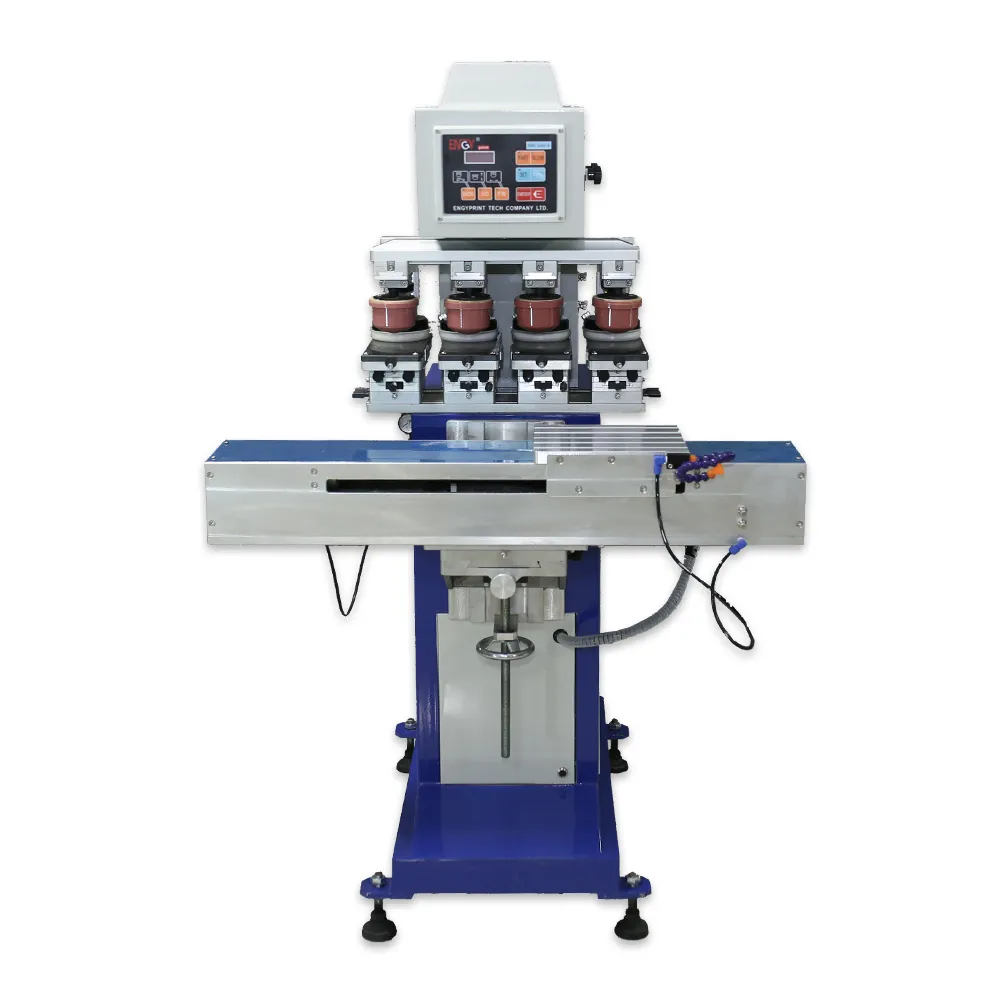

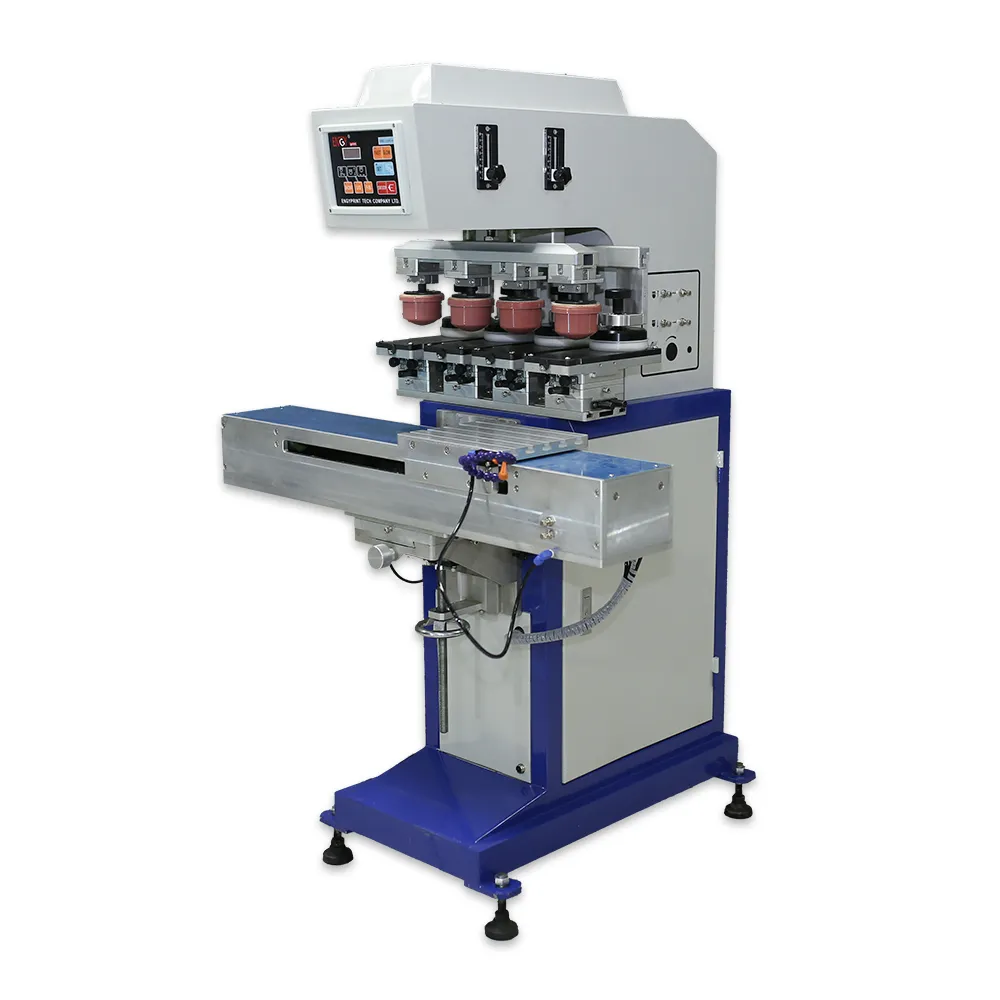

Product name: Four Color Pad Printing Machine For Gears
Model Number:EN-C160/4s
Machine Type: Four Color , Closed Ink cup
Inkcup Size: OD 90 ID 82 H12mm
Plate Size: 100*250mm
Drive : Pneumatic , Semi-automatic
Application : Gears, Toys, Pen, cap of bottle,
watches, cameras, pharmaceutical and medical equipment etc.
Machine Standard Features:
In order to get a closed ink cup pad printer ready for printing, it is necessary to prepare a air compressor , ink , related consumables including: pad which is made according to the sample and the logo, ink cup( assembled with ceramic ring or carbide ring ), plate with logo(by etching or by engraving ) , fixture ( to hold the product during printing process ) and products.
Engy print can provide the one stop solutions for pad printer, including pad printer, the related consumables and the plate making technologies
ENGYPRINT Four Color Inkcup Pad Printing Machine Specifications:
| Model NO. | EN-C160/4S |
| Plate size | 250 x 100mm (10”x4”) |
| Ink cup size (diameter) | ID82 x OD90 mm (3.23”x3.54”) |
| Max. printing size | 100 x 75 mm (2.95″x2.95″) |
| Printing capacity | 900 cycles/hour |
| Drive | Pneumatic |
| Front & back working stroke | 160 mm |
| Air requirement | 5 bar (72.5 psi) |
| Main voltage | 110V/220V 50/60Hz 40W |
| Machine size | L1050 x W830 x H1430 mm |
| Crated size | L1280 x W1150 x H1680 mm |
| Net Weight | 135kg |
| Gross Weight | 195kg |
