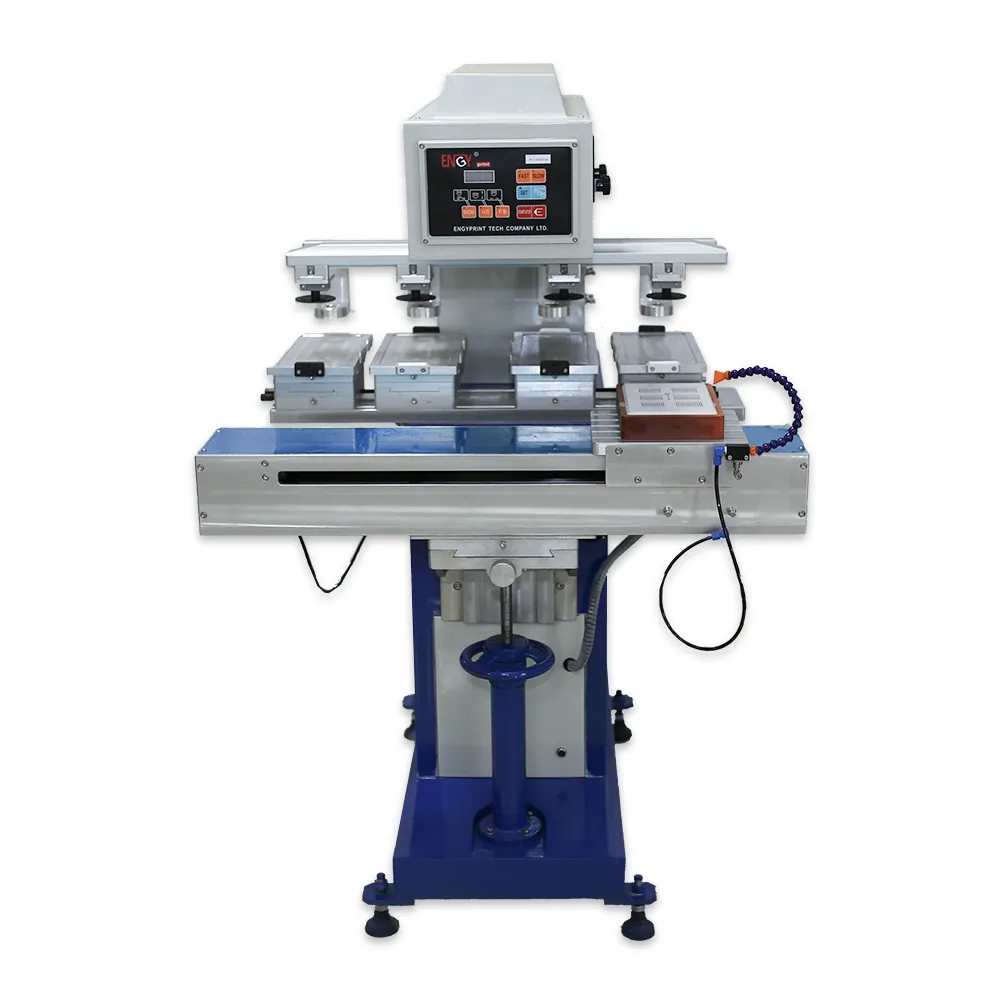

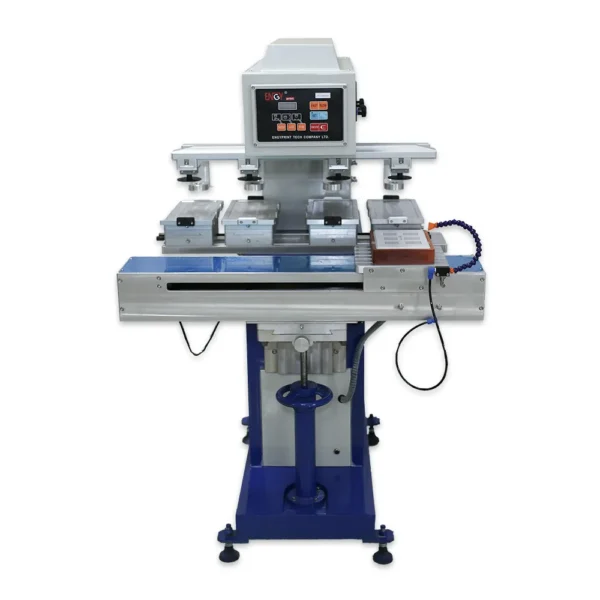

Product name: Four Color Pad Printer With Shutter For Chips
Model Number:EN-C200/4
Machine Type: Four Color , Closed Ink cup
Inkcup Size: OD 100 ID 90 H12mm
Plate Size: 100*300mm
Drive : Pneumatic , Semi-automatic
Application : Chips, Pen, Gloves, Bottle caps, cups,
watches, cameras, pharmaceutical and medical equipment etc.
ENGYPRINT Four Color Ink cup Pad Printer Specifications:
| Model NO. | EN-C200/4 |
| Plate size | 300 x 100mm (12”x4”) |
| Max. printing size | 80*100mm (3.14” x 3.93”) |
| Ink Cup Size | Ø3.54″xØ3.93″(Ø90xØ100mm) |
| Printing capacity | 900 cycles/hour |
| Front & back working stroke | 200 mm |
| Air requirement | 5 bar (72.5 psi) |
| Main voltage | 110V/220V 50/60Hz 40W |
| Machine size | L1020xW780xH1450mm |
| Crated size | L1280xW1000xH1680mm |
| Net Weight | 195kg |
| Gross Weight | 255kg |
Machine Standard Features:

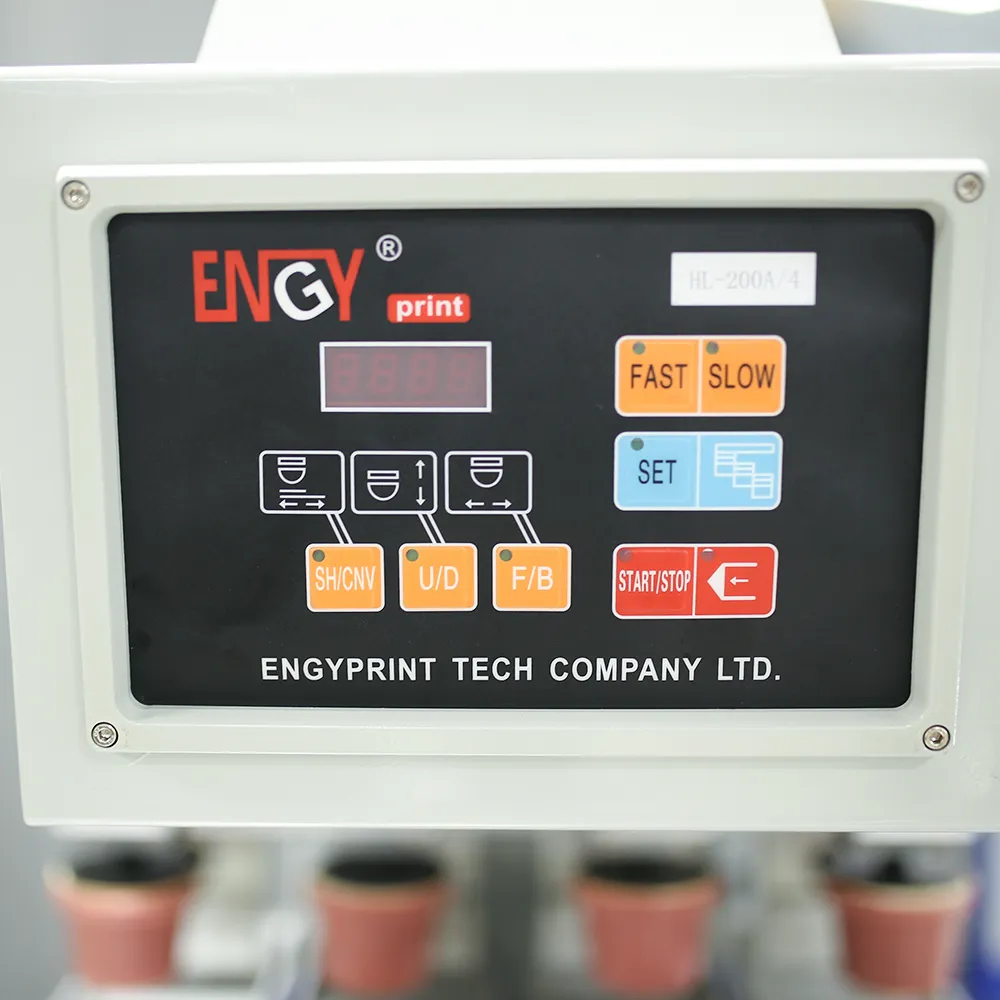

● Microprocessor operation system, electro-pneumatic control;
● 200mm working stroke, ink cup design, no ink smell and low evaporate;
● Suitable for 4 color image printing;
● Programmable up and down, forward and rear stroke;

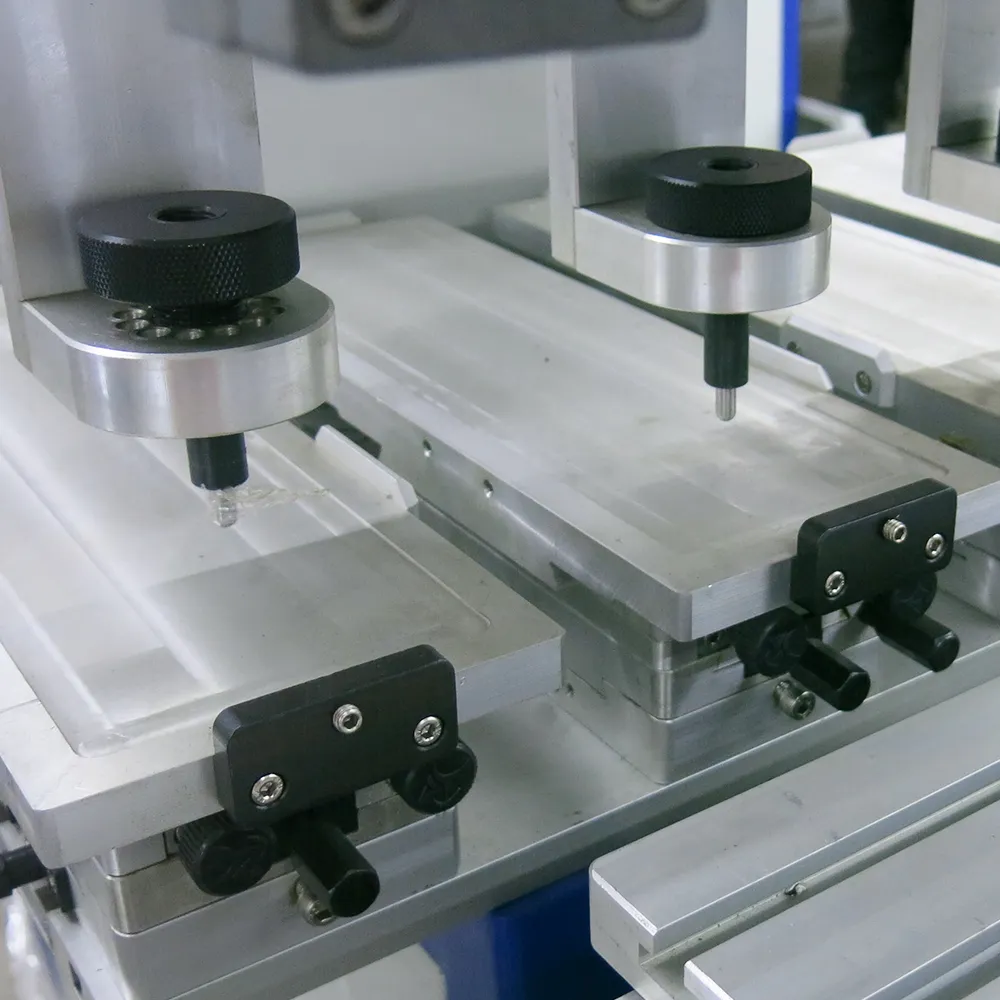

● Versatile X, Y printing pad adjustment;
● Ink cup base with X, Y, Z adjustment;
● Stable, durable and fine workmanship;
● Foot pedal operation for single cycle;
● Using FESTO or SMC pneumatic components;
● Installed safety guard and emergency stop button;
● Complying with CE safety standards;
● Operation manual is available
