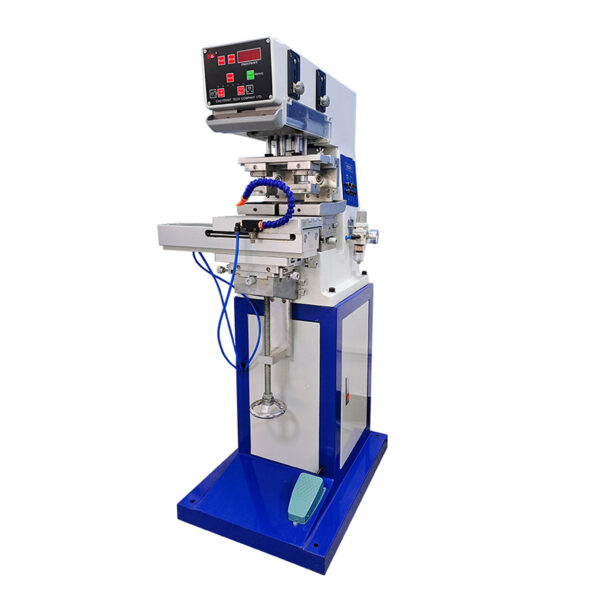

Product name : Two Color Open Tray Pad Printer For Gloves
Model Number:EN-B125/2S
Machine Type: Two Color , Open Tray
Plate Size: 100*100mm
Drive : Pneumatic , Semi-automatic
Application : Garments, Pen, cap of bottle, Gloves,
watches, cameras, pharmaceutical and medical equipment etc.
Machine Standard Features:
This pad printer is more suitable for small size pattern printing, the packing dimension is less than 1cbm , this can greatly save the shipping cost if we delivery the printer from China to aboard.
The blade press is adjustable, and please don’t forget to choose the soft blade if the plate is aluminum material.
ENGYPRINT Two Color Open Tray Pad Printing Machine Specifications:
| Model NO. | EN-B125/2S |
| Plate size | 4″x4″ (100x100mm) |
| Max. printing size | 80x80mm |
| Printing capacity | 1800 cycles/hour |
| Front & back working stroke | 125 mm |
| Air requirement | 5 bar (72.5 psi) |
| Main voltage | 110V/220V 50/60Hz 40W |
| Machine size | 680x460x1350 mm |
| Crated size | 850x560x1550 mm |
| Net Weight | 78kg |
| Gross Weight | 108kg |
