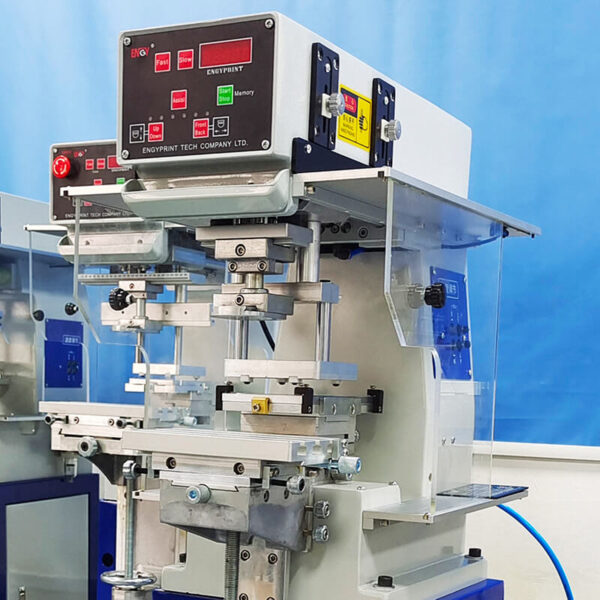

EN-B125/1 One Color Closed Ink Cup Pad Printer for Contact Lens

Product name : One Color Closed Ink Cup Pad Printer For Contact Lens

Model Number:EN-B125/1

Machine Type: One Color , Closed Ink cup

Inkcup Size: OD 90 ID 82 H12mm

Plate Size: 100*200mm

Drive : Pneumatic , Semi-automatic

Application : Garments, Pen, cap of bottle,

watches, cameras, pharmaceutical and medical equipment etc.

Product Details

Machine Standard Features:

The appearance of this series of pad printer has been modified a little, ink cup mounting method is changed compare to our standard E series pad printer. Now, It’s compatible with kent style ink cup.

The printing speed , work table height are adjustable, Engyprint is aim to provide great printing quality with economical printer solution.

ENGYPRINT Single Colour Inkcup Pad Printing Machine Specifications:

Model NO.	EN-B125/1
Plate size	8″x4″ (200x100mm)
Max. printing size	Ø70 mm (Ø2.75″ mm)
Ink Cup Size	Ø82xØ90 mm (Ø3.2″xØ3.5″)
Printing capacity	2600 cycles/hour
Front & back working stroke	125 mm
Air requirement	5 bar (72.5 psi)
Main voltage	110V/220V 50/60Hz 40W
Machine size	680x460x1310 mm
Crated size	850x610x1500 mm
Net Weight	68kg
Gross Weight	209 lbs (95 kg)
