EN-B175/4 Four Color Pad Printer For Cups

Product name: Four Color Pad Printing Machine For Water Bottle

Model Number:EN-B175/4

Machine Type: Four Color , Closed Ink cup

Ink cup Size: OD 90 ID 82 H12mm

Plate Size: 100*250mm

Drive : Pneumatic , Semi-automatic

Application : Gears, Toys, Pen, cap of bottle, Water bottle,

watches, cameras, pharmaceutical and medical equipment etc.

Product Details

Machine Standard Features:

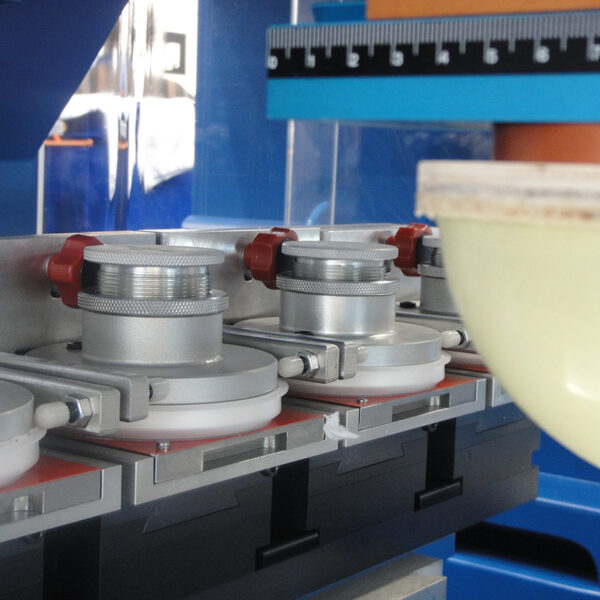

It is a four color closed ink cup pad printer, can be customized and changed into a automatically loading or unloading the products,

To choose a suitable pad printer, it is necessary to consider the product size and material, if it is PP or PE plastic, some treatment will be needed before printing to make sure the logo won’t be easily erased .


ENGYPRINT Four Color Inkcup Pad Printing Machine Specifications:

Model NO. EN-B175/4
Plate size 250 x 100mm (10”x4”)
Ink cup size (diameter) ID82 x OD90 mm (3.23”x3.54”)
Max. printing size 100 x 75 mm (2.95″x2.95″)
Printing capacity 900 cycles/hour
Drive Pneumatic
Front & back working stroke 160 mm
Air requirement 5 bar (72.5 psi)
Main voltage 110V/220V 50/60Hz 40W
Machine size L1050 x W830 x H1430 mm
Crated size L1280 x W1150 x H1680 mm
Net Weight 135kg
Gross Weight 195kg
